Mitsubishi 4 Zone Ductless/Ducted Systems: Ultimate Climate Control

Introducing Kyle’s Innovative Home Heating and Cooling Solution

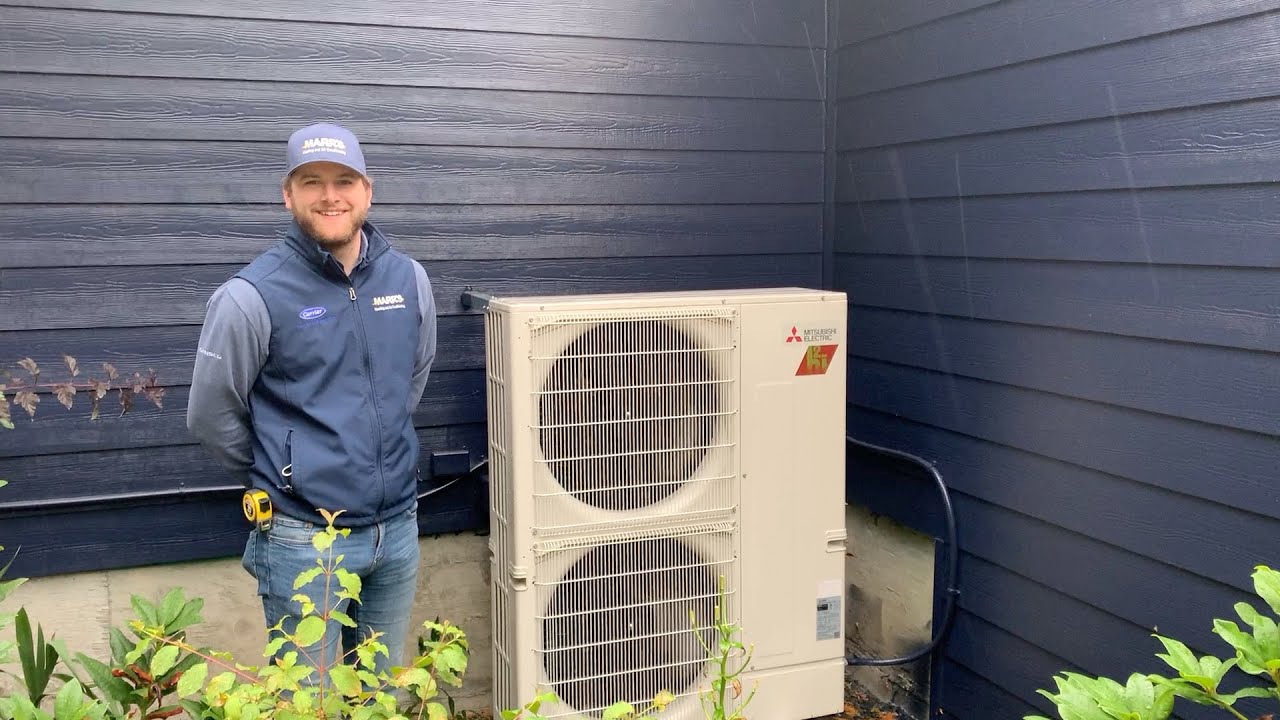

On a striking rainy day, we had the privilege of exploring an ingenious home heating and cooling system, designed and sold by Kyle. The homeowners initially had an existing forced-air heat pump system and a propane furnace backup. Regrettably, the heat pump was unable to keep up adequately, and the duct system had substandard efficiency. Consequently, Kyle opted for a Mitsubishi 48,000 BTU Hyper Heat System, offering an extraordinary solution tailored to their needs.

Setting the Stage for Optimal Performance

For Kyle’s state-of-the-art system, it was essential to have an appropriate foundation to ensure stability and longevity. The unit was placed on a pad made of gravel, secured with heavy-duty rubber feet to cater for the top-heavy nature of the machine. Moreover, the corners and top were strapped down, incorporating a vibration isolator for enhanced durability and performance.

Integrating an ICM493 Line Voltage Monitor

One innovative idea that Kyle implemented was the use of an ICM493 Line Voltage Monitor. This noteworthy device continuously keeps an eye on the system’s line voltage, ostensibly offering a safeguard against power issues. In the event of line voltage fluctuations, the monitor will gracefully shut down the system, preventing any harm to the unit or the ductless heads located in the attic.

Innovative Attic Layout and Ducted Air Handlers

Sitting in the attic are two slim-profile ducted air handlers, connected to two ductless heads located downstairs. Intriguingly, Mitsubishi’s system design means all line sets need not return to the outdoor unit—a distribution box handles this function. Refrigerant is fed into the main lines and distributed through the branch box to all ductless and ducted zones.

The conscientious planning and layout of the system in the attic ensure ease of maintenance while avoiding any potential tripping hazards. This mindful approach demonstrates the meticulous care and attention to detail displayed by Kyle and his team.

The Interior System: Concealing and Enhancing Comfort

Within the home, the aim was to provide heating and cooling solutions that blend seamlessly into the design while offering optimal comfort. In the smaller bedrooms and the bathroom, instead of installing noisy oversized wall-mounted heads, a ducted ductless system was chosen. This subtle choice discretely inserts registers into each room, resulting in a sleek appearance with minimal disruption.

Living Spaces: Expansive Open Floor Plans Need Adaptability

Within the main living room, kitchen, and dining areas, a 24,000 BTU head was mounted high on the wall, allowing for versatile wireless thermostat positioning. This staggering setup ensures consistent heating and cooling without short cycling due to heat rising quickly to the head.

Customized Solutions for Diverse Spaces

Throughout the remainder of the house, including the den and master bedroom, wall-mounted heads and ducted ductless systems were employed for personalized heating and cooling solutions. Attic space made it feasible to drain condensate without using a pump, ultimately minimizing the need for additional equipment.

The master bedroom utilizes a ducted air handler discreetly tucked away, partnering with the attic air handler. The master bathroom and closet also feature supply ducting to ensure a comfortable environment in every corner of the living space.

Embracing the Future of Home Heating and Cooling

Kyle’s exceptional design and execution in implementing the Mitsubishi 48,000 BTU Hyper Heat System demonstrate the incredible potential of modern technology for creating comfortable homes. By choosing tailored solutions for each space and intelligently utilizing both ducted and ductless components, Kyle has successfully delivered a bespoke environment that blends seamlessly with the home’s aesthetic, free of any disruptions.

In conclusion, embracing adaptive technology and ingenious design for unique, comfortable, and efficient heating and cooling solutions is the way forward. With professionals like Kyle leading the charge, it won’t be long before more homeowners adopt such proficient, transformative systems that elevate their living spaces to new heights.
