Klein VDV500-705: My Go-To Wire Tracer Kit
I’ve spent thirty years crawling through attics, basements, and commercial ceiling spaces, and I can tell you that tracing wires is one of those unglamorous tasks that separates the professionals from the weekend warriors. When you’re routing thermostat wiring through existing walls, troubleshooting a malfunctioning zone control system, or identifying which Cat5 cable feeds to your Wi-Fi thermostat, you need a tool that works the first time-because you’re not getting paid to make three trips back to the truck.
That’s why I’m taking a hard look at the Klein Tools VDV500-705 Wire Tracer Tone Generator and Probe Kit. While this isn’t specifically an HVAC tool, it’s become increasingly relevant to our trade. Modern HVAC systems rely heavily on low-voltage control wiring-communicating thermostats, zone dampers, smart home integration, and networked equipment all depend on properly installed and identified data and control cables. I’ve seen too many service calls where the real problem wasn’t the equipment, but a misidentified wire or a crossed connection that could’ve been diagnosed in five minutes with the right tool.
Klein Tools has a solid reputation in the trades, and this particular kit promises to handle everything from basic telephone lines to RJ45 ethernet cables that increasingly connect our equipment to building management systems. But does it hold up under real-world conditions when you’re tracing a wire buried behind drywall or sorting through a rat’s nest of cables in a mechanical room? That’s what I’m here to tell you.
Product Overview and First Impressions
Right out of the box, this Klein Tools tone and probe kit feels like it was designed by someone who actually works in the field. The tone generator is compact enough to slip into a tool pouch without adding bulk, and the probe has a reassuring weight that suggests durability rather than cheap plastic. I’ve used plenty of wire tracers over the years-especially when diagnosing control wiring issues on mini-split systems or tracking down thermostat cables buried in walls-and first impressions matter when you’re spending hours hunting wire runs. The non-metallic conductive tip on the probe is a smart touch that reduces the risk of accidental shorts, and the integrated worklight is genuinely useful when you’re crouched in an attic space trying to trace low-voltage control lines for a heat pump installation. The kit includes alligator clips for unterminated wires and an RJ45 to RJ45 test cable, which covers most scenarios I encounter-whether I’m verifying connections on a networked thermostat system or sorting out communication wiring for a zoned HVAC setup.
The probe’s adjustable volume control and headphone jack are standout features, particularly when you’re working near running equipment like condenser fans or air handlers where ambient noise can drown out the tone. I appreciate that Klein included the option for headphones (though you’ll need to supply your own) because there’s nothing more frustrating than trying to hear a faint signal next to a roaring blower motor. The toner and probe together perform a pin-to-pin wire map test, which is invaluable for verifying proper connections on multi-conductor control cables-something I regularly deal with when installing variable-speed systems or multi-stage heat pumps that rely on precise communication between components. This isn’t an HVAC-specific tool, but it handles the low-voltage wiring challenges we face daily, from 24V control circuits to Ethernet-connected smart thermostats, making it a practical addition to any service bag.
| Feature | Details |
|---|---|
| Wire Compatibility | Ethernet, Telephone, Coax, Speaker, Video, Data (RJ45, RJ11, RJ12) |
| Probe Tip | Non-metallic conductive with integrated worklight |
| Audio Output | Built-in speaker with adjustable volume; headphone jack included |

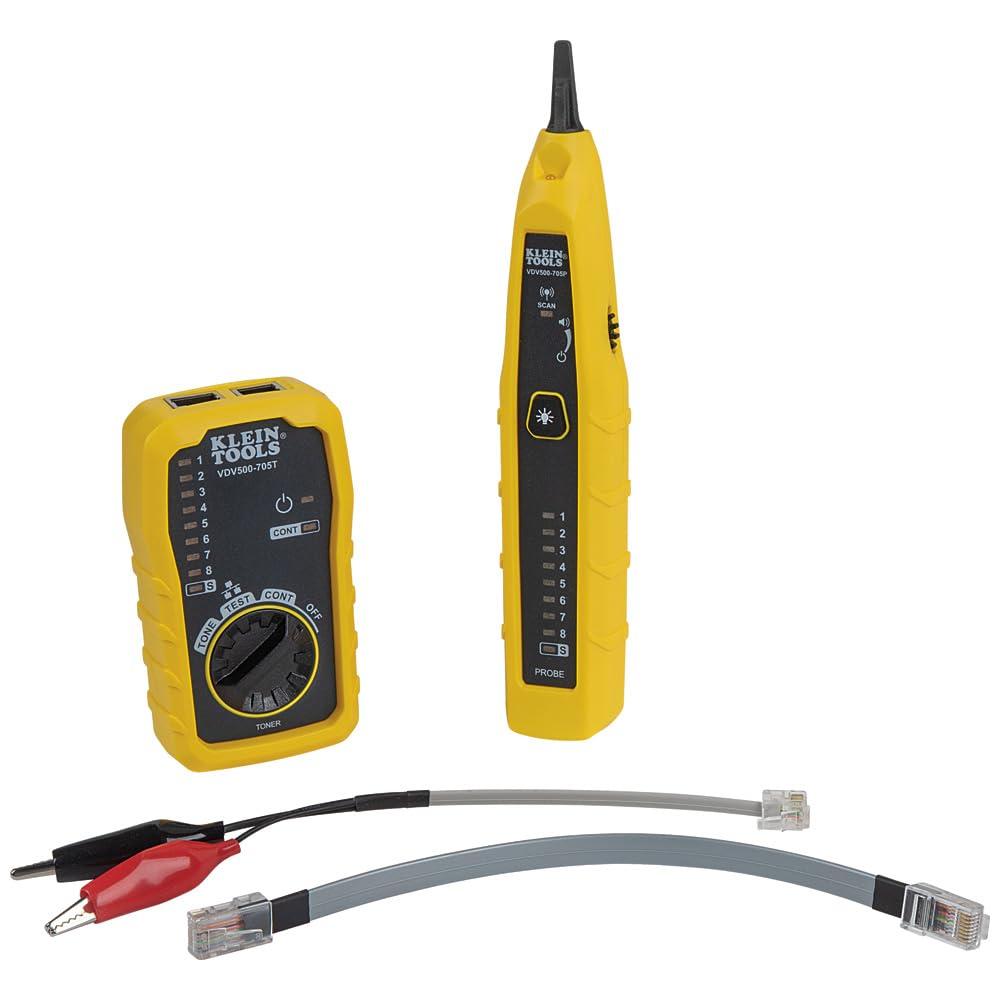

| Included Accessories | Alligator clips, RJ45 to RJ45 test cable |
| Wire Mapping | Pin-to-pin continuity testing capability |
| Use Case | Non-energized, open-ended low-voltage wire tracing |
Check Current Price and Availability on Amazon
Key Features and Wire Tracing Performance
After years of tracking down low-voltage wiring in tight mechanical rooms and cramped attic spaces above air handlers, I can tell you this Klein VDV500-705 kit delivers where it counts. The analog tone generator pumps out a clear signal that the probe picks up reliably, even when I’m working around the electromagnetic interference from 24VAC control circuits and transformer hum near condensing units. The probe’s non-metallic conductive tip is durable enough to handle daily abuse, and the built-in worklight is a game-changer when I’m tracing thermostat wiring in crawl spaces or identifying control wires behind equipment in dim utility closets. I appreciate the adjustable volume control and headphone jack-essential when I’m troubleshooting near noisy compressors or blower assemblies where ambient sound would otherwise drown out the tone. The included alligator clips and RJ45-to-RJ45 test cable cover most scenarios I encounter, from unterminated zone control wiring to terminated Ethernet runs for smart thermostats and building automation systems.
The pin-to-pin wire mapping functionality has proven invaluable when verifying multi-conductor control cables during installations or retrofits, especially when integrating variable-speed air handlers or zoned systems with complex wiring schemes. I’ve used this kit to trace everything from thermostat circuits to speaker wire for zoned audio systems that share conduit with HVAC controls. The probe’s speaker delivers audible output loud enough for most environments, but in mechanical rooms with high ambient noise-think older belt-drive blowers or reciprocating compressors-the headphone jack becomes essential. Klein’s advice to separate wires and ensure proper grounding is spot-on; I’ve found signal clarity improves significantly when I isolate the target wire from bundles, particularly when working near high-current lines feeding condensing units or electric furnaces. For technicians dealing with low-voltage diagnostics daily, this kit handles the fundamentals without unnecessary complexity.
| Feature | Specification |
|---|---|
| Wire Types Supported | Ethernet, Telephone, Coax, Speaker, Data (RJ45, RJ11, RJ12) |
| Tone Generator Type | Analog, non-energized wire only |
| Probe Tip | Non-metallic conductive with integrated worklight |
| Audio Output | Built-in speaker with adjustable volume, 3.5mm headphone jack |
| Included Accessories | Alligator clips, RJ45-to-RJ45 test cable |
| Wire Mapping | Pin-to-pin continuity testing |
| Typical HVAC Applications | Thermostat wiring, zone controls, low-voltage circuits (24VAC) |
Ease of Use and Practical Applications in HVAC Diagnostics

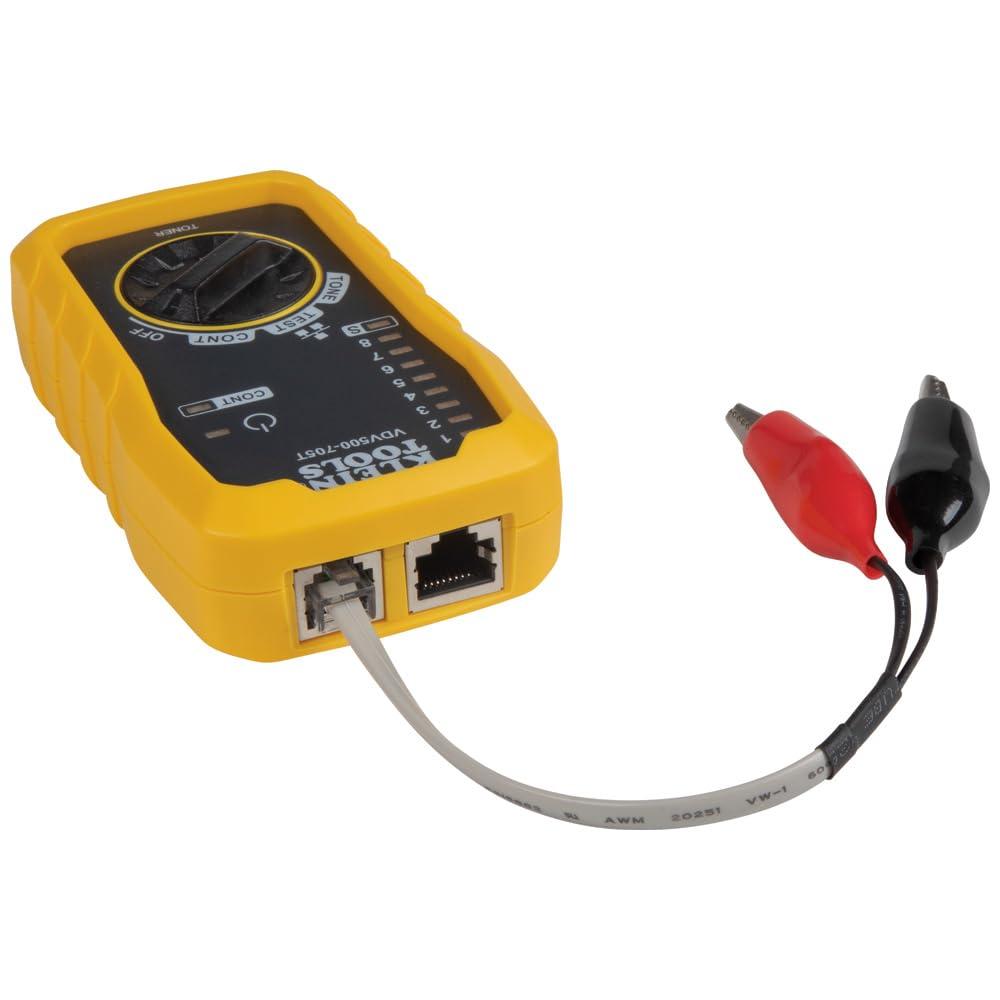

In my years working on commercial and residential HVAC systems, I’ve lost count of the hours wasted tracing control wiring through crawlspaces and ceiling plenums. This tool has become indispensable when diagnosing thermostat circuits, tracking down broken communication wires between condensers and air handlers, or verifying connections on zoned systems with multiple dampers. The tone generator’s alligator clips make quick work of attaching to unterminated 18-gauge control wires, and the included RJ45 cable is perfect for testing Ethernet-based smart thermostats and communicating HVAC controls that are increasingly common in high-SEER variable-speed systems. The probe’s adjustable volume and headphone jack are lifesavers in mechanical rooms with noisy 80,000+ BTU furnaces or rooftop units running at full tilt. The built-in worklight on the probe tip illuminates tight spaces behind air handlers or inside electrical panels where I’m tracing 24VAC transformer secondaries-something I deal with daily on both heat pump and traditional split systems.
The pin-to-pin wire mapping function has proven particularly valuable when commissioning multi-zone installations or troubleshooting communication faults on variable refrigerant flow (VRF) systems that rely on extensive low-voltage control networks. I’ve used it to verify proper wiring on economizer damper controls, trace speaker wire repurposed for zone sensors, and even identify mislabeled coax runs that building owners thought were dead. Key practical features include:
- Non-energized wire tracing ensures safety when working near live 240VAC compressor circuits or high-voltage furnace connections
- Durable non-metallic probe tip prevents accidental shorts when working in crowded electrical enclosures typical of packaged units
- Tone optimization through wire separation helps isolate individual control circuits in bundled cable runs common in commercial installations
- Works with RJ11/RJ12 phone-style connectors found on many older thermostat and zone control systems
| Application | HVAC Use Case | Benefit |
|---|---|---|
| Thermostat Troubleshooting | Tracing 24VAC control wiring through walls | Eliminates guesswork in diagnosing no-call-for-heat issues |
| Zone System Installation | Verifying damper actuator connections | Prevents callback visits due to miswired zones |
| Smart HVAC Integration | Testing Ethernet runs to Wi-Fi thermostats | Ensures reliable communication on high-efficiency systems |
| Retrofit Projects | Identifying existing low-voltage wiring | Saves installation time on equipment upgrades |
Check Current Price and Availability
Overall Value and Final Recommendation
After years of diagnosing everything from miswired thermostats to tangled low-voltage runs in commercial installs, I can confidently say this Klein Tools kit earns its place in my toolbox. At this price point, you’re getting a reliable tone generator and probe that handles the daily grind of tracing control wiring for mini-splits, smart thermostats, zone dampers, and communicating systems without breaking a sweat. The adjustable volume control with headphone jack is a game-changer when you’re working near noisy compressors or air handlers, and the built-in worklight on the probe tip has saved me countless times in dark attics and cramped mechanical rooms. The alligator clips and RJ45 test cable cover most scenarios I encounter-whether I’m troubleshooting a 24VAC control circuit on a two-stage heat pump or tracing Ethernet for a web-enabled thermostat. The pin-to-pin wire mapping function ensures I’m not just finding the wire, but confirming continuity and proper termination before energizing systems that could range from a 12,000 BTU ductless unit to a multi-zone commercial setup.
| Feature | Field Application |
|---|---|
| Tone Generator | Traces non-energized low-voltage wiring (thermostats, zone controls, dampers) |
| Probe with Worklight | Illuminates dark spaces in attics, crawlspaces, and behind equipment |
| Alligator Clips | Connects to unterminated control wires and 24VAC transformer leads |
| RJ45 Test Cable | Tests Ethernet for smart thermostats and web-based HVAC controllers |
| Volume Control + Headphone Jack | Allows clear tracing in noisy mechanical rooms near operating equipment |
The kit’s durability stands up to the rough treatment HVAC work demands-I’ve dropped the probe more times than I care to admit, and the non-metallic conductive tip keeps working without cracking or losing sensitivity. It’s straightforward enough that apprentices can use it effectively on their first day, yet robust enough for complex multi-stage system diagnostics where separating control wiring from power lines is critical. Whether you’re installing a high-efficiency variable-speed system with intricate control schemes or just troubleshooting why a single-zone unit won’t respond to the thermostat, this Klein kit delivers consistent results. For techs who spend significant time on low-voltage troubleshooting-and let’s be honest, that’s all of us in the modern HVAC world-this represents solid value that pays for itself after just a few service calls.
Ignite Your Passion
After years in the field, I’ve learned that the tools in your bag are just as critical as the systems you’re installing or servicing. The Klein VDV500-705 has earned its place in my kit because it does exactly what it promises-no guesswork, no wasted time, just reliable wire tracing when I need it most.
We talk a lot about choosing the right HVAC equipment for comfort, efficiency, and reliability. The same principle applies to your tools. When you’re troubleshooting a thermostat wire or tracking down a zone control issue, having a dependable wire tracer means faster diagnosis, cleaner work, and happier customers. That translates directly to systems that run as designed-delivering the comfort, energy savings, and indoor air quality homeowners are counting on.
I’ve seen techs struggle with inferior tracers, only to end up pulling their hair out in a crawl space or attic. Don’t be that guy. The Klein VDV500-705 gives you clarity when you need it, with the durability to back it up job after job. Whether you’re running new low-voltage wiring or diagnosing an existing system, this kit handles it with confidence.
If you’re serious about delivering quality work and protecting your reputation, make the investment. Your future self-and your customers-will thank you.
