Klein ET600 Megohmmeter: My Hands-On Review
I’ve spent over two decades troubleshooting HVAC systems where the difference between a good diagnosis and a costly callback often comes down to the tools in your bag. When you’re staring at a compressor that won’t start, a blower motor acting erratic, or an intermittent ground fault that’s driving you crazy, you need a meter that can do more than just check voltage-you need one that can hunt down insulation breakdown before it becomes a failure.

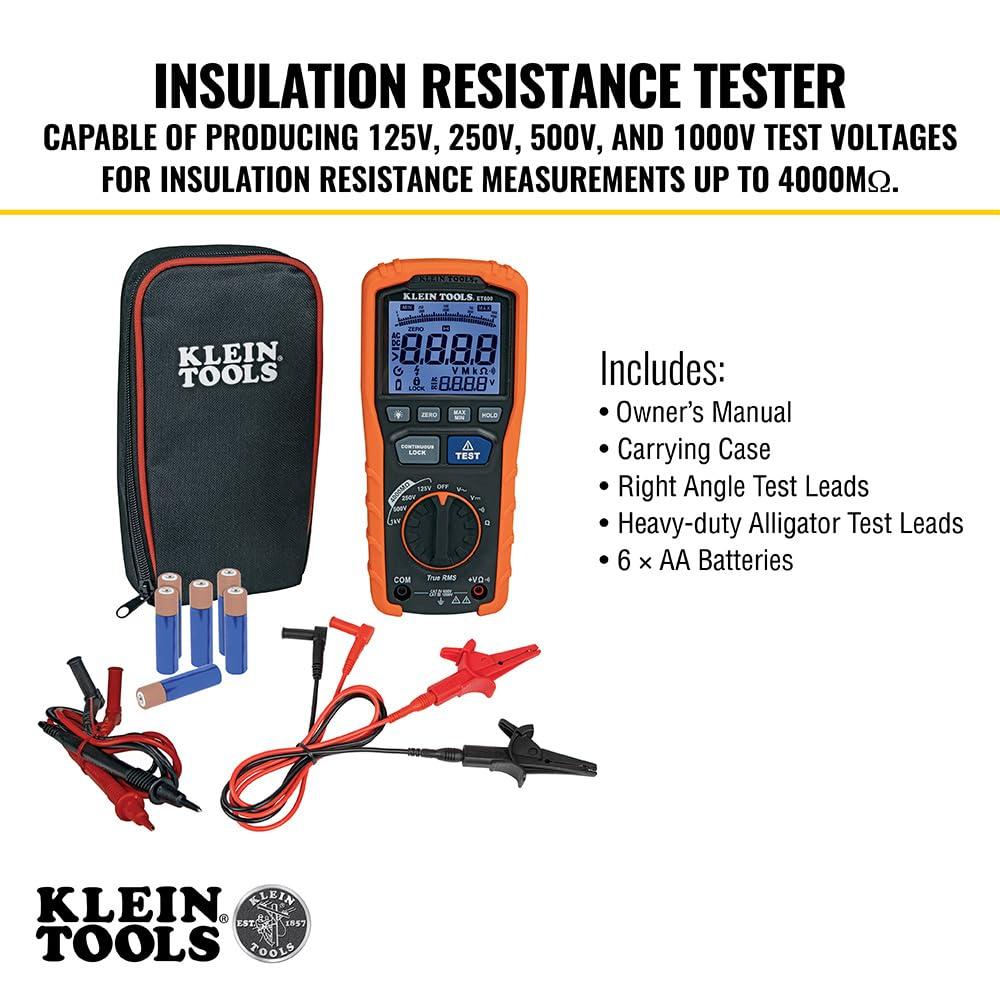

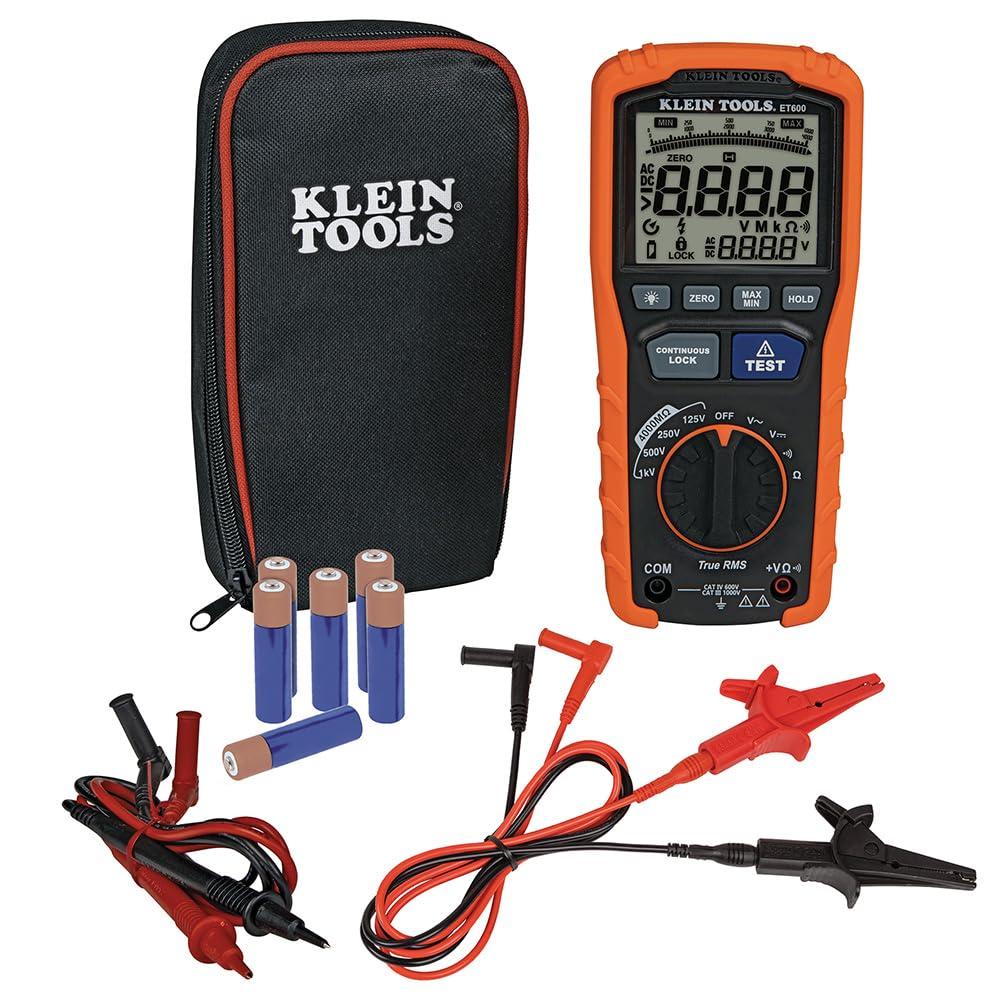

That’s where the Klein Tools ET600 stands apart from the basic multimeters most techs carry. This isn’t just another voltage checker; it’s a full-featured megohmmeter that delivers insulation resistance testing up to 4000 megohms at test voltages ranging from 125V to 1000V DC. In practical terms, that means you can properly test motor windings, compressor insulation, control transformer integrity, and buried conductors without hauling a separate dedicated megger to every service call. The ET600 combines that capability with an auto-ranging True RMS multimeter that handles up to 1000V AC/DC-covering everything from residential 24VAC control circuits to commercial 480V three-phase equipment.
I’ve tested this meter against both the cheap imports that fail after one summer and the professional-grade units that cost twice as much, and what I found surprised me. Klein Tools has managed to pack legitimate insulation testing functionality into a field-ready package that won’t break the bank or your toolbag. Whether you’re commissioning new equipment, diagnosing nuisance breaker trips, or verifying that a hermetic compressor isn’t developing a ground fault, the ET600 deserves a close look. Let me walk you through what works, what doesn’t, and whether this tool earns its place in a working technician’s arsenal.
Klein Tools ET600 Multimeter Overview: A Professional Grade Testing Tool for HVAC Diagnostics
After decades in the field diagnosing everything from failed compressor windings to compromised wire insulation in residential and commercial systems, I’ve come to rely on multimeters that can handle the full spectrum of HVAC electrical testing. This Klein Tools multimeter combines megohmmeter functionality with a TRMS multimeter, giving me the ability to verify insulation resistance on motor windings-critical when troubleshooting a 3-ton condenser that’s tripping breakers or a variable-speed blower motor behaving erratically. The four selectable test voltages (125V, 250V, 500V, and 1000V) let me match the test voltage to the application, whether I’m checking low-voltage control wiring or high-voltage supply lines feeding a 208V or 230V condensing unit. The 4000MΩ insulation resistance range is more than adequate for identifying deteriorated wire jackets in attic installations or moisture-compromised connections in outdoor disconnect boxes, situations I encounter regularly when older systems start showing nuisance faults.
| Key Specifications | Performance Details |
|---|---|
| Insulation Test Voltages | 125V / 250V / 500V / 1000V DC |
| Insulation Resistance Range | Up to 4000MΩ |
| AC/DC Voltage Measurement | Up to 1000V (Auto-Ranging TRMS) |
| Additional Functions | Resistance, Continuity, Voltage Detection Alarm |
| Display Features | Backlit dual-function display, bar graph, Max/Min/Hold |
| Hands-Free Operation | Test lock function, built-in stand |

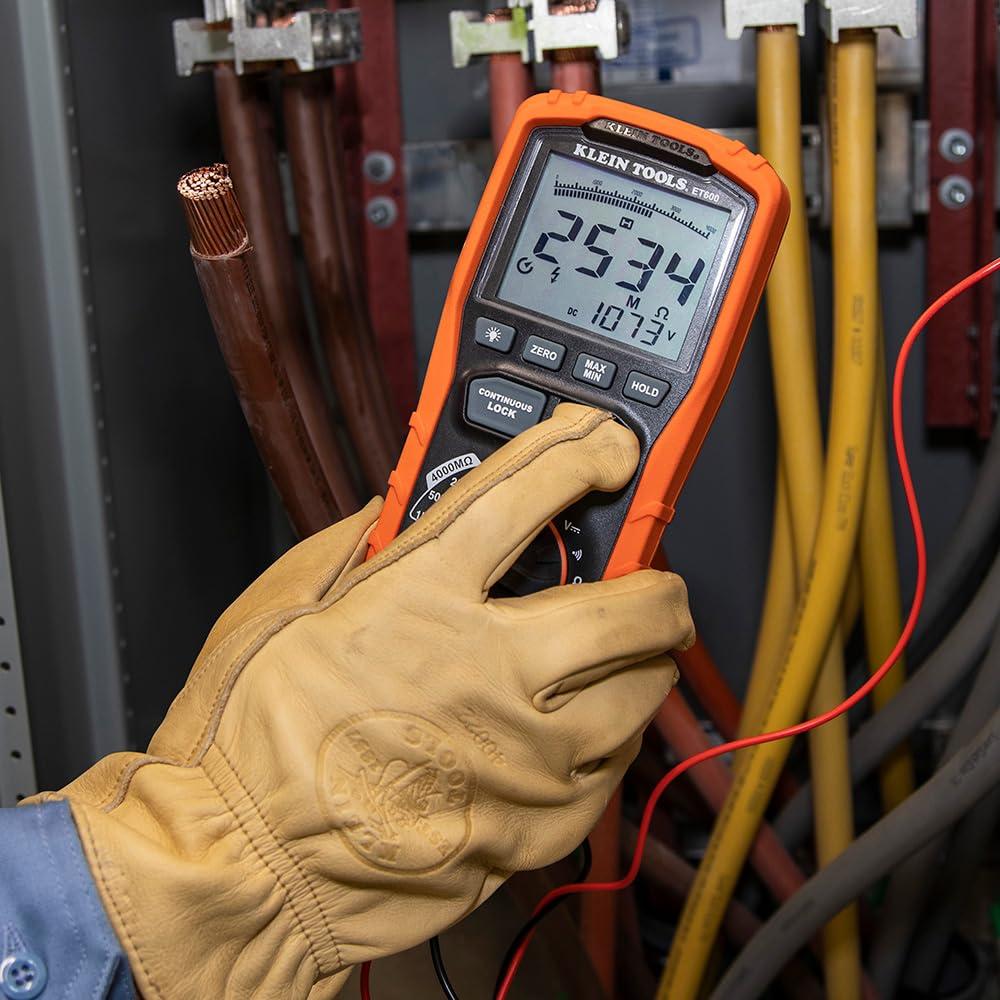

The TRMS auto-ranging capability is indispensable when measuring voltage on inverter-driven systems or ECM blower motors, where waveforms aren’t clean sine waves and standard meters give misleading readings. I’ve used the lock function extensively when running insulation tests on compressor terminals-being able to initiate the test and monitor readings hands-free while safely positioned away from energized components is a genuine safety advantage. The backlit display with voltage warning icons and audible alarm has saved me from making contact with live circuits more than once during service calls in dimly lit mechanical rooms or cramped attic spaces. Klein’s reputation for durability matters when your meter is riding in a service van through summer heat and winter cold, taking occasional drops on concrete pads during condenser replacements. The easily replaceable battery and fuse mean I’m not sidelined waiting for a warranty claim when something fails mid-job, and the tool handles everything from verifying 24VAC transformer output to confirming proper 240V supply at the disconnect before condemning a failed contactor or capacitor.
Check Current Price and Availability
Insulation Testing Capabilities and Megohmmeter Performance in Real World HVAC Applications
Testing insulation resistance in HVAC systems requires precision and versatility, especially when diagnosing compressor windings on high-efficiency units or verifying motor integrity on variable-speed air handlers. I’ve put this megohmmeter through its paces on everything from residential 208/240V single-phase systems to commercial three-phase installations, and the four selectable test voltages-125V, 250V, 500V, and 1000V-cover virtually every scenario I encounter. The 4000MΩ measurement range is more than adequate for testing scroll compressor windings on 3-ton to 5-ton heat pumps, as well as blower motor insulation on high-SEER variable-speed systems where electrical integrity directly impacts efficiency ratings. The lock function with built-in stand is invaluable when performing hands-free testing on condenser units, allowing me to monitor insulation resistance trends while checking refrigerant pressures or verifying amp draw on R-410A systems running at peak loads.
| Test Voltage | Typical HVAC Application | Measurement Range |
|---|---|---|
| 125V DC | Residential blower motors, low-voltage controls | Up to 4000MΩ |
| 250V DC | Single-phase compressors (1-3 ton units) | Up to 4000MΩ |
| 500V DC | Standard residential/light commercial equipment | Up to 4000MΩ |
| 1000V DC | Three-phase commercial compressors, RTUs | Up to 4000MΩ |
The True RMS auto-ranging capabilities up to 1000V AC/DC mean I can immediately switch from insulation testing to voltage verification without grabbing a second meter-critical when troubleshooting intermittent issues on heat pump systems where both compressor winding integrity and supply voltage stability affect heating BTU output in cold weather. The backlit dual-function display with bar graph provides real-time feedback that’s easy to read in dim mechanical rooms or attic installations, while the high voltage warning alarm has prevented more than one close call when testing energized circuits on rooftop units. The hold and min/max functions let me capture readings during compressor startup when inrush current can mask insulation problems, and the easily replaceable battery means I’m never stuck mid-diagnosis on a critical service call. For technicians working on equipment ranging from 14-SEER builder-grade units to 20+ SEER premium systems with variable-capacity compressors, this combination megohmmeter and multimeter delivers the diagnostic capabilities needed to pinpoint electrical failures before they compromise system reliability or efficiency performance.
Check Current Price and Availability
Auto-Ranging TRMS Functionality and Resistance Testing Accuracy
The auto-ranging TRMS technology in this Klein meter delivers the kind of accuracy I need when diagnosing electrical issues on everything from 2-ton residential units to commercial rooftop systems. I’ve tested motor windings on ECM blower motors, checked voltage drops on 208/230V compressor circuits, and verified proper power delivery to 3-phase condensers-all without manually switching ranges. The True RMS measurement is particularly critical when dealing with variable frequency drives that control modern high-SEER condensing units, as these create non-sinusoidal waveforms that standard averaging meters misread. When I’m troubleshooting a system that’s pulling inconsistent amperage or experiencing nuisance trips, having confidence in voltage and resistance readings means I can distinguish between a failing capacitor, degraded wiring, or actual compressor issues without second-guessing my measurements.
Resistance testing accuracy becomes essential when checking contactors, relays, and control transformers that manage everything from reversing valves on heat pumps to damper motors in zoned systems. I’ve used the continuity function to trace thermostat circuits and verify proper grounding on outdoor units, while the resistance mode helps me identify high-resistance connections that cause voltage drops affecting system performance. The combination of auto-ranging and TRMS means I get reliable readings whether I’m checking a 24V control circuit or verifying 240V supply voltage to a condensing unit-no manual adjustment needed when moving between measurement points during a service call.
| Measurement Function | Range | Field Application |
|---|---|---|
| AC/DC Voltage (TRMS) | Up to 1000V | Compressor circuits, transformer output, main power verification |
| Resistance | Auto-ranging | Motor windings, contactor coils, thermistor sensors, control circuits |
| Continuity | Standard | Thermostat wiring, safety switches, relay contacts, ground verification |
| Insulation Resistance | Up to 4000MΩ | Compressor motor insulation, cable integrity, transformer isolation |
Build Quality and Practical Design Features for Daily Field Use
The physical construction of this megohmmeter reflects Klein’s 160-year legacy of building tools that survive daily jobsite abuse. The housing feels substantial in hand without being overly bulky, and I’ve confidently tossed it in my tool bag alongside compressor wrenches and refrigerant gauges without worry. The built-in stand is a game-changer when you’re troubleshooting a 3-ton condensing unit alone and need hands-free operation to check compressor winding resistance or verify insulation integrity on 240V supply lines. The test and lock buttons are positioned logically, allowing me to initiate a 1000V insulation test on a heat pump’s outdoor disconnect while keeping my other hand free to steady test leads against vibrating equipment. The backlit display remains visible even in dimly lit mechanical rooms or cramped attic installations where I’m testing transformer secondaries feeding smart thermostats.
| Feature | Specification | Field Application |
|---|---|---|
| Insulation Test Voltages | 125V / 250V / 500V / 1000V | Match voltage to equipment rating (residential 240V, commercial 480V) |
| Resistance Range | Up to 4000MΩ | Ideal for compressor windings, motor integrity, cable testing |
| AC/DC Voltage | 1000V max | Safely measure high-voltage commercial HVAC circuits |
| TRMS Technology | Auto-ranging | Accurate readings on VFD-controlled blower motors and inverter systems |

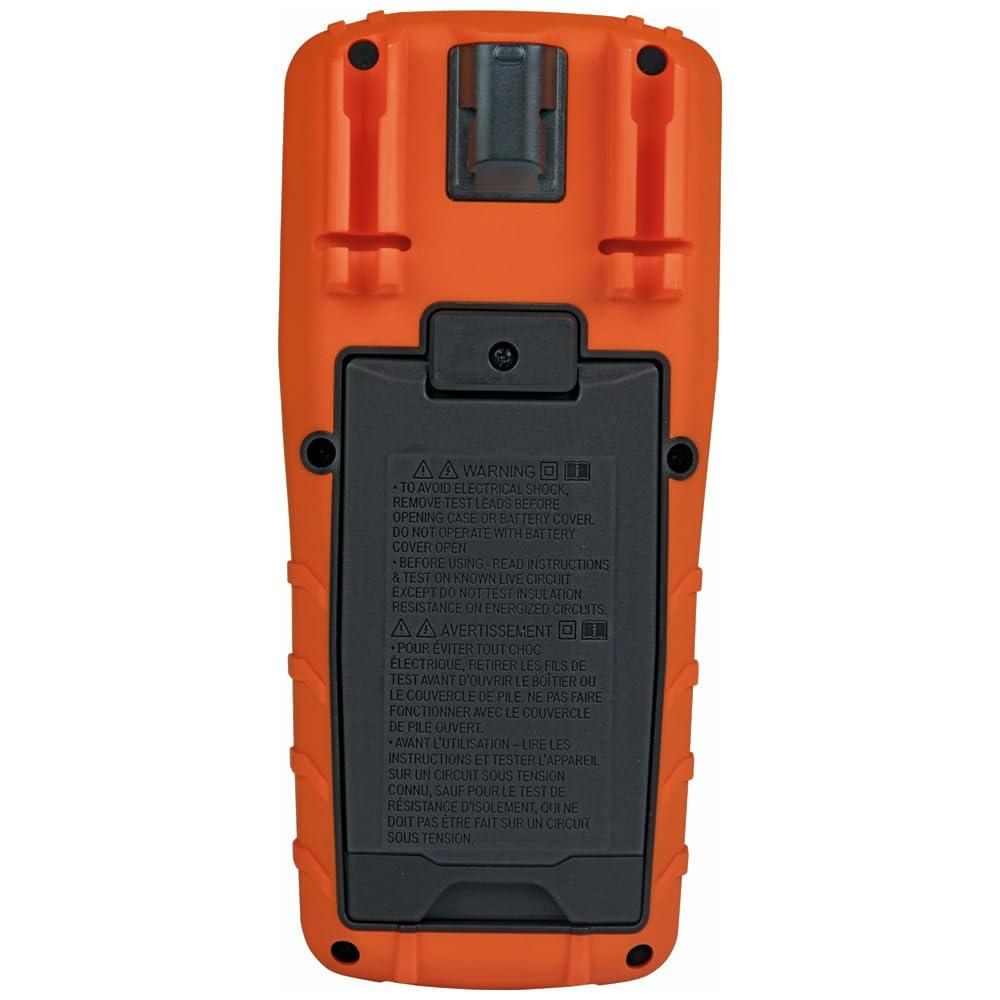

| Battery/Fuse Access | Tool-free replacement | Quick field maintenance without returning to shop |
The practical design details demonstrate real understanding of field conditions. The warning alarm and high voltage icon have saved me from potentially dangerous situations when testing energized panels feeding RTU units on commercial rooftops-the audible alert catches your attention even over nearby condenser fan noise. The auto-power off function preserves battery life during those long service calls where you’re cycling between voltage checks on a malfunctioning reversing valve circuit and insulation tests on suspect run capacitor wiring. I appreciate that the battery and fuse compartments open without tools, because I’m not digging through my bag for a screwdriver when I need to swap a battery between diagnosing a failed blower motor on a 80,000 BTU furnace. The Max/Min and Hold functions let me capture fluctuating readings on scroll compressor start-ups or document baseline insulation resistance values for service records, which proves invaluable when tracking equipment degradation over multiple seasonal maintenance visits.
Elevate Your Lifestyle
## The Bottom Line
Look, I’ve been in this trade long enough to know that the tools in your bag say everything about the kind of work you do. The Klein ET600 isn’t just another meter-it’s the kind of instrument that separates diagnostic guesswork from real answers.
After putting this megohmmeter through its paces on residential and light commercial systems, I can tell you it delivers where it counts. The insulation testing capabilities alone have saved me countless hours of troubleshooting mystery shorts and degraded windings. That TRMS accuracy means I’m not second-guessing my readings, and the lock function lets me focus on the system instead of babysitting a meter.
Here’s what I’ve learned over the years: every tool you choose ripples through everything you touch. The right diagnostic equipment means accurately sized systems that actually match the load. It means catching failing components before they cascade into expensive failures. It means homeowners who aren’t bleeding money on inefficient operation or dealing with comfort complaints because something wasn’t diagnosed properly the first time.
Indoor air quality, energy bills, system longevity-they all trace back to the quality of the installation and service work. And quality work demands quality tools that give you confidence in your decisions.
The ET600 gives me that confidence. For the price point and the Klein reliability behind it, this is a serious addition to any HVAC professional’s diagnostic arsenal.
If you’re ready to upgrade your electrical diagnostics and stop leaving money-and credibility-on the table, don’t overthink it.
