In the last video, we covered

an overview of a Fuzzy inference system, and the basic

mechanics of how it all works. In this video, I want to

continue that discussion by walking through a slightly

more complex example, because it's going

to allow us to talk about some important

concepts that we missed in the last video– namely, membership function

shapes, Fuzzy operators, multiple input

inference systems, and rule firing strength. So I hope you stick

around for it. I'm Brian, and welcome

to a MATLAB Tech Talk. For this video, we're going

to look at a Fuzzy inference system that determines

how much you should tip at a restaurant

given two inputs– food quality and

service quality.

Now, you might be thinking that

this is a rather silly example, but as we go through

it, keep in mind that the steps that we

take and the understanding we get from walking

through this problem will help you solve other

Fuzzy logic-based problems, whether you're designing

a Fuzzy controller or any other

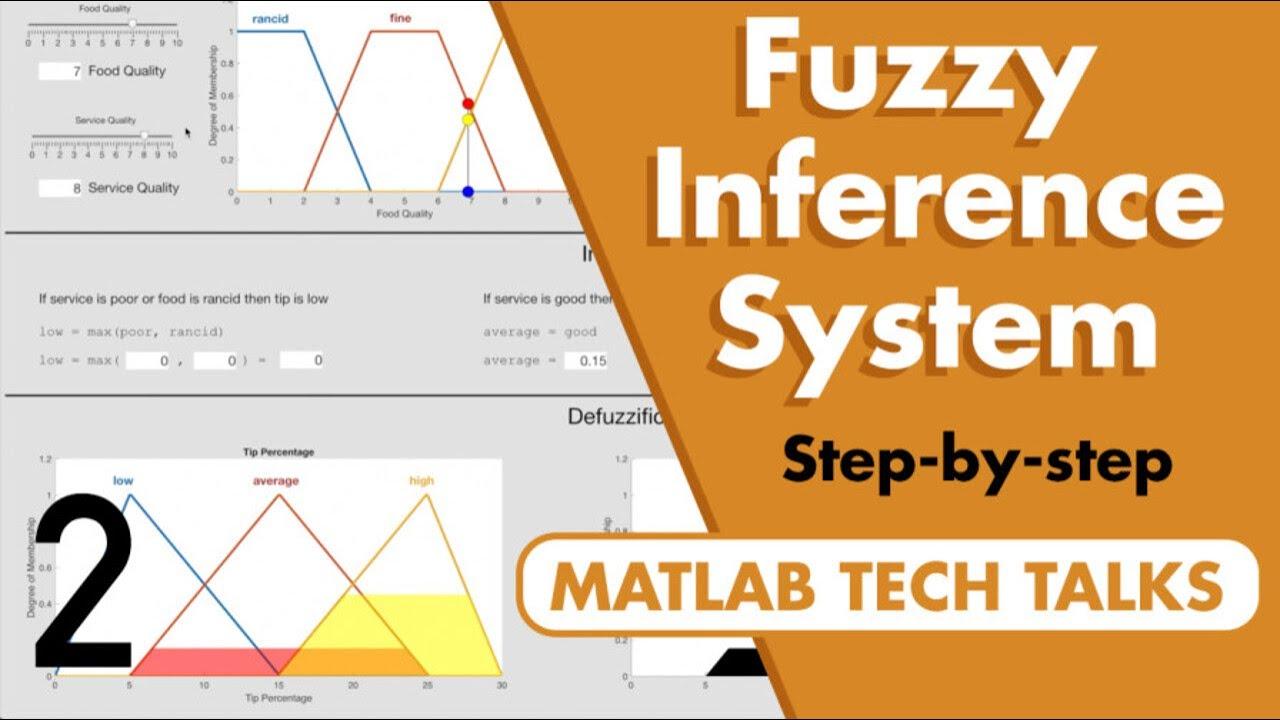

decision-making process. OK, to walk through

this example, I created a simple app

in MATLAB to visualize each of the steps in

the inference process. And like we did before, we're

going to break this problem up into three distinct sections– fuzzification, inference,

and defuzzification. So let's start

with fuzzification. We have two crisp

inputs into the system– food quality and

service quality– and they range from 0 to 10. And we can think about it like

a feedback card at a restaurant.

How was your service? How was your food,

rated 0 to 10? And to fuzzify

these two values, we use the linguistic

variables– those are the human

interpretable adjectives– and their respective

membership functions. So in this example, food is

described as delicious, fine, and rancid, and the

membership functions for each are described by these

three trapezoidal functions. And remember– one way to get

membership function shapes like this is to poll

hundreds of restaurant-goers and ask them what

range of numbers they think represent

rancid food, and what range is fine food, and

what range is delicious food.

And since everyone will have a

slightly different definition of these terms, we're going

to get these overlapping membership functions where

a specific value could be a partial member

to multiple functions. Like here, food quality of 7

is 45% delicious and 55% fine. Service quality also has

membership functions. Here, I'm modeling

the three adjectives of poor, good, and excellent

with Gaussian functions. And choosing the shape of

the membership functions comes down to trying to

match the real distribution of the definitions

of these adjectives.

Here I'm just

claiming that maybe we polled a bunch of

people and just tried to fit the best curve to it. However, in many cases, the

shapes of these functions are determined through

experience and expertise of the problem. If we go over to the MATLAB

documentation for membership functions in the

fuzzy logic toolbox, you can see that there are

many different shapes that you can choose from to create the

membership function that you need. Again, for this

example, I'm using trapezoidal functions

for food quality, and Gaussian for

service quality. All right, so back

at our problem. We have our two crisp inputs. And if you recall

from the last video, we can go from a crisp

input to a fuzzy variable by determining the

degree of membership in these functions

for each input.

Like we said earlier, the

fuzzified food quality of 7 becomes 0.45, 0.55, and 0, and

the fuzzified service quality for, let's say, 8 becomes

0.38, 0.15, and 0. With these two

fuzzified variables, we can move on to inference,

or using logical statements to infer what the

output should be. In this case, we have

three logical statements. If service is poor or food

is rancid, then tip is low. If service is good,

then tip is average. And if service is excellent

or food is delicious, then tip is high. And these logical statements

are similar to what we did in the last video, but

with one major difference. We now have to deal with logical

operators, like and, not, and, in this case, or. So let's talk about

fuzzy logic operators. Fuzzy logic operators

are analogous to their binary counterparts. If we look at a binary or, it

has the following truth table– 0 or 0 become 0, since

neither of them are 1. And the other three input

combinations result in a 1, since at least one

of the inputs is a 1. You can see that

one way we could calculate the result

of a binary or is with the maximum function.

The output is always the

maximum of the two inputs. And the good thing about using

a maximum function like this is that it works when the

two input variables are not a binary 1 or 0, but

rather fuzzy variables that can range between 0 and 1. So as an example, if

we or the two fuzzy variables 0.2 and 0.8, then the

result is the maximum, or 0.8. Since at least one of these

inputs is relatively large, the output of the or is

also relatively large. And similarly, if we have

two low-degree memberships, like 0.2 and 0.1, then the

output will also be low. Now, we don't have an and or

a not operator in our problem, but let's talk

about them anyway.

Here is the truth

table for a binary and, and for a binary not. And we can calculate

them respectively with a minimum function,

and with 1 minus the input. Therefore, a fuzzy and just

becomes the minimum function of the two input variables,

and a fuzzy not is just 1 minus the input variable. Now, there are other ways

to define fuzzy operators than these three

that I've presented. Other ways include T-norms,

or triangular norms, and their counterparts,

T-conorms. On Wikipedia there's

some nice graphics that visually show what these

different norms are doing. For example, the minimum T-norm

produces this 3D contour. Notice that as long as

one of the inputs is 0, then the output is 0. And if both inputs are

1, then the output is 1– which is exactly the binary and. But with this

minimum function, you can see what the output would

be for any values for the two fuzzy inputs. Similarly, instead

of minimum, if we use the product

T-norm for a fuzzy and, then the 3D contour

would look like this. The four binary conditions of

0 0; 1, 0; 0, 1; and 1, 1 each produce the expected

output for a binary and, but in between,

the fuzzy variables would produce slightly

different values than the minimum function.

So as you can probably imagine,

there are many different ways to define each of

the fuzzy operators, and they'll each produce

slightly different results. However, for this

video, I'm going to stick with max, min, and 1

minus the input to represent or, and, and not. OK, back to our problem. Our three statements become

the following mathematical equations. Low is the maximum

of poor and rancid. Average equals good,

and high is the maximum of excellent and delicious. And for the inputs, food quality

of 7 and service quality of 8, we get low is 0, average

is 0.15, and high is 0.45. These values are the

rule firing strengths. That is, they represent how much

each particular rule impacts the final output. And this might not

be too impressive with just three

rules, but it becomes really important for

systems that have a couple dozen rules– or more– because viewing the

rule firing strengths can help you understand which rules

have the largest impact, which is helpful for troubleshooting,

or just understanding your system.

So if we go back to

the simple flowchart that we developed

in the first video, the rule base in

this inference step uses the rule firing strength

for fuzzy logical implication of the output variables. So fuzzification works

on the input variables, and then the rule base

implies the output variables. All right, so we have a

fuzzy variable indicating how much tip we should leave. That is, what degree of

low, average, and high should the tip be? And in this case,

it's 0.15 and 0.45. And to get this fuzzy variable

back into a crisp tip value– a very specific amount– we need to defuzzify it.

And once again, we need

the membership functions for the tip

adjective to do this. And to keep with my theme of

showing different membership function shapes, I choose

triangles for this one. A low tip ranges between 0%

and 15%, average is 5% to 25%, and high is 15% to 30%. Now we can use the

degree of membership in each one of these functions

to determine the tip percentage with defuzzification. And I said in the last video

that there are many ways to defuzzify a fuzzy number,

and in the MATLAB documentation, you can see a handful of methods

that the fuzzy logic toolbox software supports, including

the popular centroid method, which is what I'm going to

use for this tipping problem.

And let me quickly reiterate

what the centroid method is. We can fill each output

membership function based on the degree

of membership that is stated in the fuzzy variable. So we don't fill the low

membership function at all, since it has 0

degrees of membership. But we fill the average

function up 15% from the bottom, and then we fill

the high function 45% up from the bottom. We then combine these filled

areas into a single shape, and then the defuzzified

number is the x-coordinate of the centroid of the shape. Or in other words, if

you think of this area as a plate with uniform

thickness and density, the centroid is the

point along the x-axis about which the fuzzy set

would perfectly balance. And in this case, that

point is at 20.2%. Now, if I change the inputs into

this fuzzy inference system, you can start to get a feel for

how the input membership sets change, which then affect

the logical statements, which change the degree of membership

in the output sets, which change the centroid location,

changing the output value.

Look at this one where the

food is perfectly delicious, but the service quality

was abysmally poor. So these two

conditions average out, and the tip is exactly

the average amount of 15%. And notice that with

the centroid method, the absolute lowest

output possible is the centroid of the

lowest membership set, which, in this case, is 6.8%. And the highest possible output

is the centroid of the highest membership set, which is 23.2%. And this is important to note,

because if you were expecting the output to have a

range of 0% to 30%, then you would need to adjust these

membership functions to account for that by making them

a little bit wider. OK, so what we've

created here is a mapping between the two input

variables and the one output variable, and that mapping

is fixed and deterministic given these

particular membership functions and these rules. So theoretically, we

could systematically cycle through every single

input combination and determine what

the output is. For example, the inputs 0.1

and 0.1 produce a tip of 6.8%, so I can just put that

value in this 3D graph.

And then the next set

of inputs of 0.1 and 0.4 also produce a tip of 6.8%, and

I put that point in the graph. Moving on to 0.1 and 0.7

produces a tip of 7%. Now we can just continue

cycling through all of the possible combinations

of food quality and service quality across

their entire range, and produce this

set of points that describe the

input/output relationship for this inference system. So that's pretty cool, but

instead of this discreet set of points, we can see

that this can be defined by a continuous 3D surface. So given a food quality

and service quality input, we can use this

service to look up what the tip output should be. And rather than run the

whole fuzzy inference system real time on your

target processor over and over again each

sample time, we could replace this entire system

with a simple lookup table that is governed by this surface. It would essentially just

use the x and y-coordinates from the inputs to look

up the output tip value. And replacing a fuzzy

inference system with a lookup table like

this might be beneficial if you want to run this function

on a microcontroller that is computationally limited.

A lookup table requires

much fewer computations to execute than

fuzzifying the inputs, performing inference, and

then defuzzifying them, which is great. And as I will show you

shortly, this control surface can be generated quite

easily with the gensurf function in MATLAB. However, there is a

downside with lookup tables, because we lose the benefit of

the human interpretable rules that created this surface. And so even if you deploy a

lookup table to your processor, it's beneficial to maintain the

fuzzy inference system offline and use it as the source

for changes to the system.

For example, let me

show you how easy it is to update the rules

in our tipping function. Now, instead of using the

rather clunky app that I wrote, I recreated it with

a MATLAB script. The first part defines the input

and output membership functions in the exact same way

that we had them before. You can see that the service

functions are Gaussian, the food functions

are trapezoidal, and the tip functions

are triangular. In the inference

section, you can see that I've defined the

exact same three rules as well.

And now I can generate

that input/output mapping that we did before with

the gensurf function. And as you can see,

it looks like what we created by manually

cycling through the inputs. Now let's say that I want to

change this system by adding a fourth rule that says that if

food is fine, then tip is high. Basically, I'm saying that

the food is the most important thing, and if it's

fine, then I'm happy to tip a high amount– no matter what the

service was like. And if I add that rule

to my inference system and generate the

new surface, you can see that the

mapping has changed. The center portion

around the fine food area has been raised, just as

we would have expected. And it's this easy

and intuitive creation and manipulation of

fuzzy inference systems that make them so powerful.

Now, I know I said that

this example was silly, but we can use this to

do so many other things. For example, this is

a fuzzy controller that can balance a pole

on top of a moving cart. It's the classic inverted

pendulum problem, but this time the

parameters of the controller are generated in the form

of membership functions and fuzzy logic

rules, rather than PID or some other controller. And we're going to talk more

about this inverted pendulum problem, as well as other

practical fuzzy logic applications in the next video. So if you don't want to miss

that or any other future Tech Ta;k videos, don't forget to

Subscribe to this channel. Also, if you want to check

out my channel, Control System Lectures, I cover more control

theory topics there as well. Thanks for watching, and

I'll see you next time..
