Installation Guide for the Climate Right CR1 12000 SA Mini Split Air Conditioner and Heater
This step-by-step installation video walkthrough for the Climate Right CR1 12000 SA mini split air conditioner and heater will furnish you with straightforward and comprehensible instructions for a righteous installation. This undertaking necessitates the assistance of two individuals to promote safety and efficacy throughout the procedure.
Unboxing and Preparation
Your air conditioning unit has arrived in two distinct parcels. One box comprises the evaporator—this is the indoor unit that you will mount upon your wall—while the second box holds the condenser, which you will securely situate outside of your residence or workspace.
Essential Tools and Safety Precautions
Before delving into the installation process, here’s a brief checklist of tools, equipment, and safety reminders that you should ponder:
- Stud Finder
- Level
- Pencil
- 6 2-inch Wood Screws
- Wall Clamps
- Drill and Drill Bits
- Ladder
You will also require a sturdy pad or base for the condenser unit. This base can consist of fiberglass material, stepping stones, or you may opt to pour a concrete platform. Furthermore, contemplate a cover for the external housing of refrigerant and electrical lines. Always adhere to standard safety practices while working with electrical tools and equipment.
Site Selection
For this demonstration, we will be installing the Climate Right CR1 12000 SA unit in a garage, though its applications extend to room extensions, upstairs rooms where conventional air struggles to maintain an even temperature, workshops, remote structures, and even enclosed tents for tailgating that do not necessitate installation. Now, let’s identify the most suitable site for your installation.
Locating the Ideal Position for the Evaporator
The first task involves correctly pinpointing the best location for the wall-mounted installation of the evaporator. Achieving this entails utilizing the stud finder accompanied by a small nail. Should you not have access to a stud finder, it is readily available at your local home improvement outlet.
Next, detach the mounting plate from your indoor unit and anchor the mounting plate to the wall so that the holes in the plate align with the studs. This ensures the unit’s secure hold on the wall. As an added measure, utilize a level during this phase to maintain a horizontal alignment, keeping the plate straight as an arrow. While this step can be undertaken by an individual, the assistance of a second person can be invaluable during this alignment process.
Drilling Through the Wall
Following the hanging of the mounting plate, it’s time to drill a hole through the wall using a 2¾ inch hole saw. If penetrating through materials such as brick, concrete, or stucco, we recommend employing a hammer drill accompanied by the appropriate size hole saw for those robust surfaces. This hole will serve as the conduit for the refrigerant lines, electrical wires, and drain line.
It’s crucial to drill this hole at a slight downward angle from the interior to the exterior to facilitate proper drainage from the indoor unit.
Installing the Indoor Unit
With the hole prepared, proceed to uncoil the refrigerant lines ensuring they are positioned at a 90° angle relative to the unit. For this part of the operation, having assistance is advisable while navigating the refrigerant, electrical, and drain lines through the wall to the exterior side.
With the lines and wiring successfully anchored in place, position the evaporator unit to allow the top to latch onto the mounting plate; gently push the unit downwards against the wall until you hear a satisfying snap, signaling that it has affixed securely to the mounting plate. This culmination marks the installation of the indoor unit.
Outdoor Unit Installation
Preparing the Condenser Location
Now, let’s shift our focus to the tasks that need to be accomplished outside the establishment. Careful consideration is required when bending the lines downwards, routing them to the left or right as necessary to connect to the condenser portion of your unit. The refrigerant lines, made of durable copper tubing encased in a stainless steel sleeve, have this shielding primarily to prevent kinks in the copper tubing.
Concealing Refrigerant Lines for Aesthetic Appeal
For a refined appearance, various line coverings are available to make this segment of the installation visually appealing. These can be procured at your nearest HVAC or home improvement store, tailored to your preferred color and material.
When determining the location for the outdoor unit, ensure that the refrigerant lines align correctly with the condenser’s connections without undue strain. It is advisable to locate the unit close to an exterior power receptacle. If an outlet is not within proximity, you may wish to engage a licensed electrician to install one, as the unit necessitates a 115V power source for its operation.
Security and leveling of the condenser unit on a stable foundation are paramount. You should maintain the unit a minimum of 12 inches away from the wall to ensure optimal airflow and access for maintenance as required.
Setting Up the Unit Foundation
Start by leveling the ground prior to placing the designated pad or base. This base can be formulated from fiberglass materials, stepping stones, or you may opt to pour a concrete pad. Utilizing gravel or sand beneath the base can contribute to stability and assist in maintaining the unit’s level position.
Connecting the Refrigerant Lines

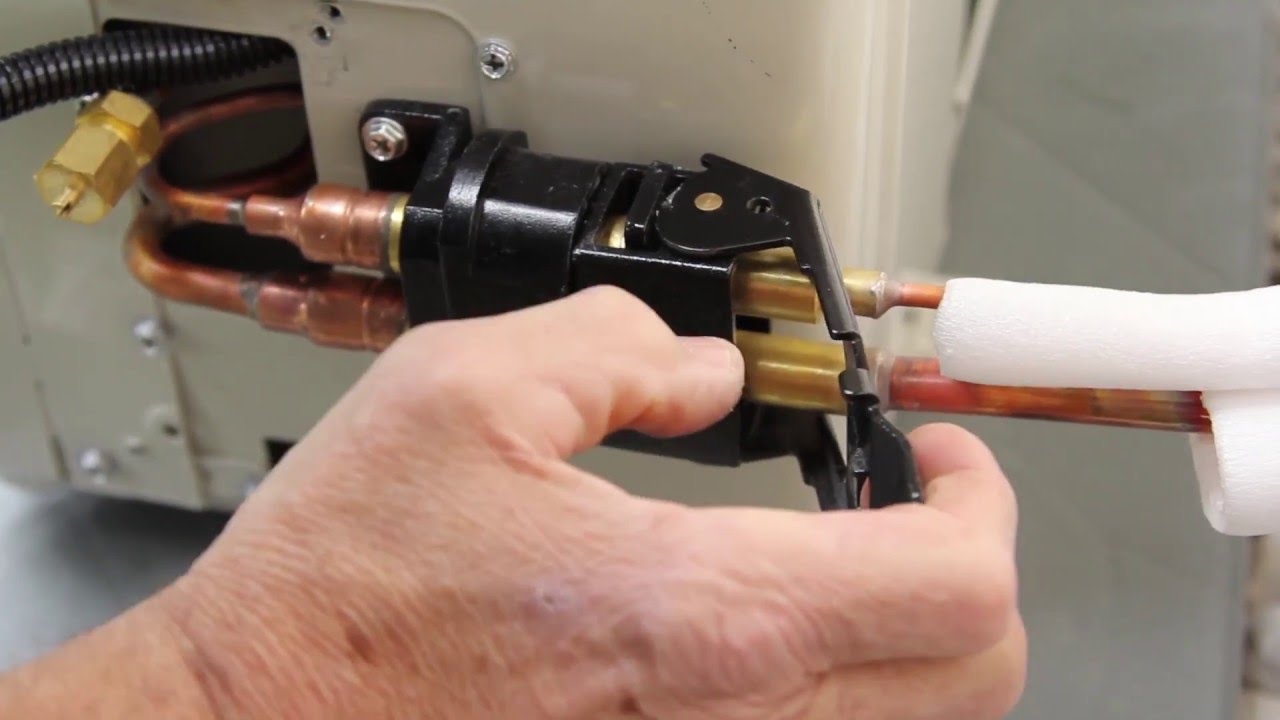

Once the unit is properly situated on the pad or base and leveled, it is time to connect the refrigerant line. Carefully remove the shipping plug from the refrigerant line; be cautious, as there may be slight pressure upon removal. Then securely attach the refrigerant lines to the condenser unit.
Final Inspection and System Activation
With the connections in place, the moment of truth arrives. Conduct a thorough inspection of all connections. Confirm that the refrigerant line connection is accurate, straight, and that clamps are efficiently securing the lines to the wall. Similarly, verify that the electrical connections are executed correctly. Do one last check on the indoor unit itself to ensure it is firmly secured on the wall.
Once all checks are completed, you may now power the system by plugging the cord into the designated outdoor receptacle, ensuring it accommodates a minimum of 115 volts. Utilizing the remote, adjust the temperature set points to 5° lower than the room’s temperature so that it will remain operational while you assess its functionality. The unit may take a few moments to initiate.
To confirm everything is functioning as it should, place your hand in front of the indoor unit to feel for cool air emitting, and do the same in front of the outdoor condenser to detect warm airflow; this indicates the evaporator is effectively drawing heat from indoors.
Conclusion
This wraps up the installation walkthrough for the Climate Right CR1 12000 SA split air conditioner and heat pump. We appreciate your choice in purchasing the Climate Right system; for further information, please visit climatea.com or call 8725 4628 during standard business hours.
