The Comprehensive Guide to Mini-Split or Ductless AC Systems
Welcome to the Bow Tie Breakdown! I’m Gary Morin, also fondly known as the Bow Tie Guy, and today, I’m going to dive into the world of mini-split or ductless air conditioning (AC) systems. Before we get started, let’s take a moment to acknowledge our military friends and family. Today is Veterans Day, and I would like to express my heartfelt thanks to those who have served. Your bravery and dedication do not go unnoticed. Happy Veterans Day!
Now, onto the topic of the day: mini-split or ductless AC systems. Whether you’re contemplating a new installation or simply curious, understanding how these systems operate and their benefits can help you make an informed decision.
What Are Mini-Split or Ductless AC Systems?

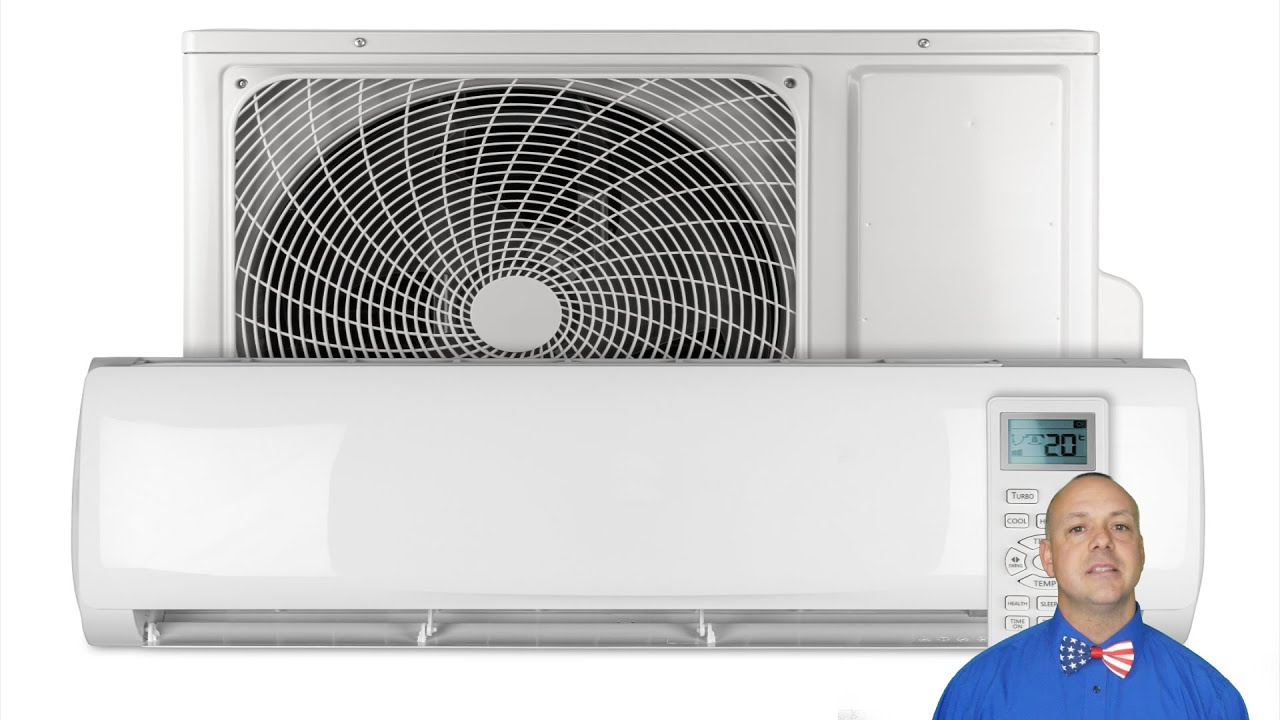

Mini-split or ductless AC systems provide a unique combination of heating and cooling solutions that stand out due to their capacity to regulate temperatures in individual rooms or spaces effectively. The beauty of these systems lies in their simplicity and efficiency. They comprise two main components:
- Outdoor Unit (Condenser): This unit is situated outside your home and functions as the brain of the system. It houses the compressor and condenser coils that manage the exchange of heat.
- Indoor Unit (Evaporator): Fixed on the interior walls of your home, the indoor unit is responsible for distributing hot or cold air within the room. This unit is often referred to as the air handler.
Unlike traditional central air systems, mini-split systems do not rely on extensive ductwork. Instead, they are equipped with a conduit, which houses the power cable, refrigerant tubing, suction tubing, and condensate drain, connecting the outdoor and indoor units.
The Benefits of Mini-Split or Ductless AC Systems
Mini-split systems bring an array of advantages that make them an appealing choice for modern homes:
1. Cost-Effective Installation
One of the most significant benefits of a mini-split system is the relatively lower installation cost. Since there is no need for ductwork, which can be both labor-intensive and expensive, the setup is simpler and more affordable. This holds particular relevance for older homes or homes without existing ductwork, where installing a central air system would require extensive renovations.
2. Zoned Comfort
Traditional HVAC systems typically control the temperature of the entire home from a single thermostat, leading to inconsistencies in comfort. Mini-split systems, on the other hand, offer zoned comfort. Each indoor unit can be individually controlled, allowing different rooms or areas of your home to be set to different temperatures. This means everyone in your household can enjoy their preferred temperature setting.
3. Energy Efficiency
Mini-split systems are known for their energy efficiency. With the ability to create multiple zones, you can cool or heat only the rooms you use, reducing overall energy consumption. Additionally, because they do not lose energy through ductwork, mini-split systems can be more efficient than central systems, which can lose up to 30% of energy through duct leaks.
4. Quieter Operation
If you ever lived with a central air system, you’re likely familiar with the noise it generates, especially during startup and shutdown. Mini-split systems operate much more quietly. The noisy part of the system, the condenser, is located outside, and the indoor units are designed to run quietly, ensuring a peaceful indoor environment.
The Technical Aspects of Mini-Split Systems
To better appreciate these systems, let’s delve into some of the technical details:
Installation Process
The installation process of a mini-split system involves a few key steps:
- Positioning the Indoor and Outdoor Units: The indoor unit is typically mounted on an exterior wall to keep the conduit short, minimizing both visual disruption and refrigerant losses.
- Creating a Conduit Hole: A small hole is drilled through the wall for the conduit, which carries the necessary components to connect the indoor and outdoor units.
- Mounting the Conduit and Connecting Components: The installer will mount the conduit, running it from the indoor unit to the outdoor unit, and connect all necessary electrical and refrigerant components.
- Securing and Testing the System: Finally, the system is secured, and all components are tested to ensure functionality.
Capacity and Sizing
Choosing the appropriate sized mini-split system for your home is critical. Systems that are too small will struggle to meet your cooling or heating demands, while units that are too large will cycle on and off frequently, which can decrease efficiency and shorten the system’s life span. A professional installer should carry out a detailed calculation of your home’s heating and cooling needs to determine the correct system capacity.
SEER Ratings
Seasonal Energy Efficiency Ratio (SEER) ratings are critical when comparing mini-split systems. The SEER rating measures the cooling output of a system divided by the total electric energy input during the same period. Higher SEER ratings indicate better energy efficiency, and while units with higher ratings may be more expensive upfront, they can save significantly on energy costs over time.
Additional Features and Modern Innovations
Mini-split systems come with a range of modern features and innovations designed to enhance comfort and convenience:
Variable Refrigerant Flow (VRF)
VRF technology allows the system to adjust the refrigerant flow dynamically based on the heating or cooling demand, ensuring precise temperature control and enhanced efficiency. This level of control can result in significant energy savings and increased performance.
Inverter Technology
Traditional HVAC systems often operate at full capacity until the desired temperature is achieved and then shut off, only to repeat the cycle again. Inverter technology in mini-split systems allows the compressor to adjust its speed based on the current cooling or heating needs, which maintains a consistent indoor temperature and reduces energy consumption.
Smart Home Integration
Modern mini-split systems are compatible with smart home technology, allowing you to control your system remotely via smartphone apps or integrate it with home automation systems such as Google Home or Amazon Alexa. This feature adds a layer of convenience and can contribute to energy savings by allowing you to adjust settings even when you’re not at home.
Air Quality Improvements
Mini-split systems often come with advanced filtration systems that help to improve indoor air quality by reducing dust, allergens, and other airborne contaminants. This can be especially beneficial for households with members who have allergies or respiratory conditions.
Addressing Common Concerns
When considering a mini-split system, here are some common concerns and how to address them:
Aesthetic Impact
Some homeowners may have concerns about the visual impact of indoor units mounted on walls. However, many manufacturers offer sleek, modern designs that can blend seamlessly with most interior decors. There are also options for ceiling-recessed or floor-mounted units, which can be less obtrusive.
Maintenance Requirements
Like any HVAC system, mini-split systems require regular maintenance to ensure optimal performance. This includes cleaning or replacing filters, checking refrigerant levels, and inspecting the system for any potential issues. Many units have self-cleaning functions that can reduce the frequency of maintenance tasks.
Initial Cost
While mini-split systems can be less expensive to install compared to traditional HVAC systems with ductwork, the initial cost can still be significant. However, the long-term savings on energy bills and the extended lifespan of these systems often justify the initial investment.
Practical Applications of Mini-Split Systems
Mini-split systems are incredibly versatile and suitable for various applications:
Home Additions and Renovations
When adding a room or renovating an existing space, extending existing ductwork can be costly and disruptive. A mini-split system provides an efficient and straightforward solution for heating and cooling the new space.
Older Homes
Many older homes lack ductwork, and installing a centralized HVAC system can be prohibitively expensive. Mini-split systems offer an effective alternative that requires minimal structural changes.
Multi-Family Residences
In multi-family buildings, such as apartments or duplexes, mini-split systems allow each unit to have individual temperature control without the need for shared ductwork, improving comfort and energy efficiency for all residents.
Conclusion
In conclusion, mini-split or ductless AC systems provide a flexible, efficient, and cost-effective solution for both heating and cooling your home. With the ability to install easily, offer zoned comfort, and operate quietly and efficiently, it’s no wonder these systems are becoming increasingly popular among homeowners and businesses alike.
Whether you are considering upgrading your current system, working on a home renovation, or simply exploring new HVAC options, a mini-split system could be the ideal solution for your needs. Remember, the right choice significantly enhances your comfort, convenience, and energy savings.
Thank you for tuning in to another Bow Tie Breakdown. I’m Gary Morin, the Bow Tie Guy, and I’m looking forward to seeing you next week as we continue to demystify the world of HVAC and beyond. Stay comfortable, stay informed, and happy Veterans Day!
