Heating Systems in New Homes: A Comprehensive Look at Modern Solutions
Hello, this is David with Hanson Carlin Architecture and Construction, and today we’re diving deep into the world of furnace and heating systems in new homes. Heating systems are a critical component of residential architecture, significantly affecting energy efficiency, comfort, and ultimately, the homeowner’s wallet. With a variety of options available, it’s crucial to understand the advantages and limitations of each type, especially when natural gas is not readily available.
Traditional Heat Pump Systems
In this particular home we’re discussing, a more traditional heating system is employed: the heat pump system. This home, situated in Green Bluff, Spokane County, has no access to natural gas. In such locales, using pure electricity for heating would be financially prohibitive; that’s where heat pump systems come into play.
How Heat Pumps Work
Heat pumps operate by using a small amount of electricity to transfer heat rather than generating it directly through combustion or electrical resistance. This mechanism can produce several times more BTUs than what would be feasible using coil heaters or baseboard heaters. Essentially, a heat pump can extract heat from the outside air—even in cold weather—and move it indoors more efficiently than conventional heaters.
Efficiency and BTU Loss
However, it’s important to note that even these traditional heat pump systems have their inefficiencies. As homes become increasingly energy-efficient, this type of heating system might see reduced usage. It’s generally accepted that about 30% of the BTUs (British Thermal Units) required to heat a home are lost through the ductwork. This inefficiency primarily stems from the need to kick on a fan, which then blows heated air through a network of ducts to various rooms.
For example, imagine needing to heat an upstairs bedroom. The system has to generate enough force to propel the air up through the ducts, warming the ducts along the way. A significant amount of energy is wasted just moving the air and warming the ducts, rather than directly heating the room.
Evolution of Cold Air Returns
Previously, cold air returns, which are essential for circulating air back to the heat source, were simply run through stud bays. Modern construction practices demand all cold air returns to be ducted, enhancing efficiency. For instance, in a narrow wall, an oval pipe could be used to channel cold air returns more effectively upstairs.
Ductless Mini-Split Systems
A highly transformative and gaining popularity approach is the ductless mini-split system. As the name suggests, these systems eliminate the need for ducts entirely, thereby reducing the energy lost through them.
Advantages of Ductless Systems

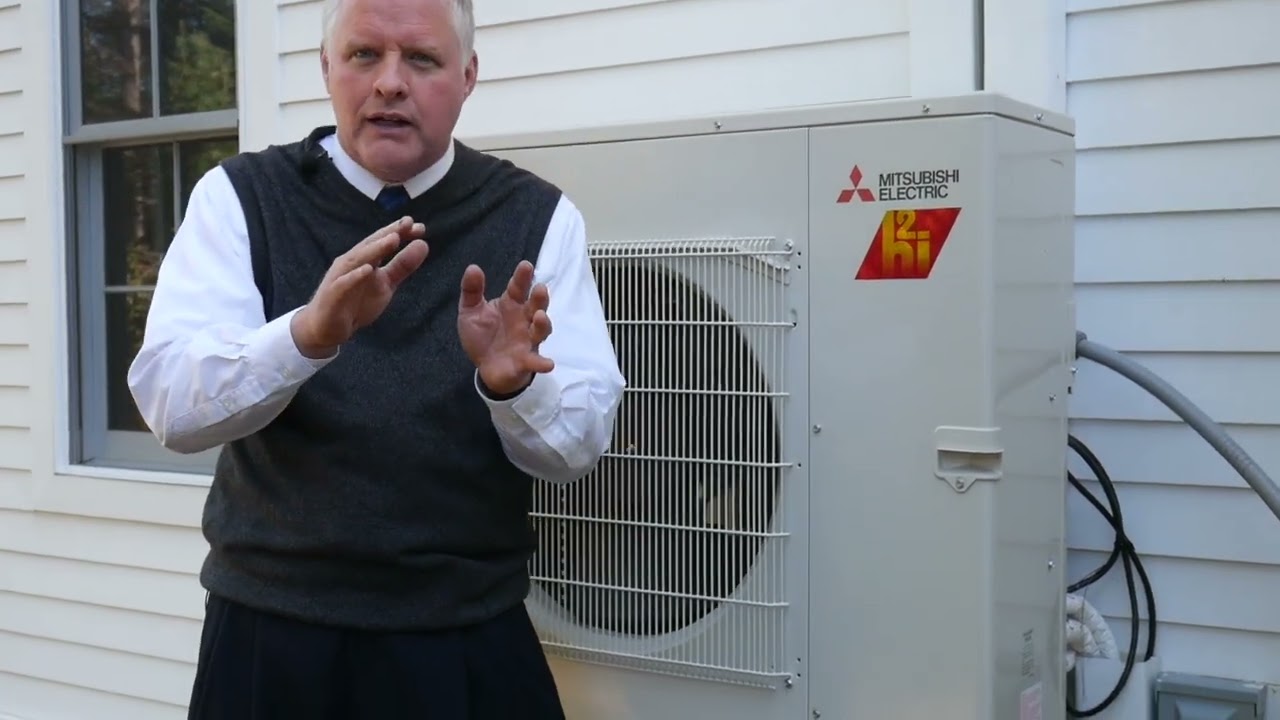

These systems operate using outdoor units paired with indoor heads located in specific zones or rooms. Each indoor unit is interconnected via refrigerant lines rather than bulky ductwork. The efficiency comes not only from avoiding duct loss but also from the variable refrigerant flow (VRF) technology.
Variable Refrigerant Flow (VRF)
VRF systems are comparable to a car’s gas pedal. They can modulate their output seamlessly, providing precise control over heating and cooling demands. For instance, the unit can operate at just 10% capacity if that’s all the climate control the room requires. In contrast, traditional ducted systems often function at one or two speeds (e.g., 60% and 100%), running full blast even when minor temperature adjustments are needed, thus wasting energy.
The efficiency of ductless systems becomes evident when you consider their SEER (Seasonal Energy Efficiency Ratio) rating. Modern units can boast SEER ratings as high as 30, significantly outperforming their traditional counterparts.
Installation and Aesthetics
Most retrofitting projects require external installations for the refrigerant lines, although in new constructions, these lines are often concealed within walls. Some homeowners might find the indoor units aesthetically unpleasing compared to a forced-air system’s hidden ductwork. However, the trade-off is near-silent operation and higher energy efficiency, unmatched by traditional systems.
Enhancements and Features
Modern ductless mini-split systems come packed with features aimed at enhancing user comfort and system efficiency.
Intelligent Controls
Many units, such as the Mitsubishi FFH, include advanced features like an “I-see” sensor. This technology allows the system to detect human presence in a room and adjust the airflow either directly towards or away from occupants, depending on the desired comfort level. This capability can mitigate the sensation of drafts while optimizing the temperature of occupied zones.
Versatility
These units often include versatile modes such as dehumidifiers, timers, and programmable settings, which extend their functionality beyond mere heating and cooling. These add-ons collectively enrich the user experience, making the system far more adaptive to specific needs and conditions.
Conclusion
In closing, the journey through different heating systems reveals the rapid evolution from traditional heat pump systems to innovative ductless mini-split systems. As homes become more efficient, opting for systems that minimize energy loss becomes critical. Traditional heat pumps are robust and reliable, but their inefficiencies in ducted setups are a concern. On the other hand, ductless mini-split systems offer high efficiency, flexible operation, and future-proofing.
For new home constructions, the choice between these systems must be informed by factors such as availability of natural gas, structural layout, and personal preferences in aesthetics and noise levels. New technologies like VRF and intelligent controls further tip the balance towards ductless systems as the future of home heating and cooling.
If you’re building a new home or looking to retrofit an existing one, understanding these systems’ nuances will guide you in making an informed decision that balances comfort, efficiency, and cost.
Thank you for joining me, David at Hanson Carlin Architecture and Construction, as we explored the heating systems in modern homes. Whether you’re a homeowner, builder, or architect, staying informed about these advancements can help you make better decisions for a more efficient and comfortable living environment.
