If you’ve ever tried loosening a refrigerant line fitting in a cramped mechanical room or removing bolts from an air handler in a tight attic space, you know the frustration of standard ratchets. Your knuckles take a beating, and the constant need to reposition your tool slows everything down. After field-testing the DEWALT 20V MAX XR Cordless Ratchet Set (DCF510GE1) on multiple HVAC installations and service calls over the past two months, we found a tool that eliminates these pain points—though it’s not without its quirks.

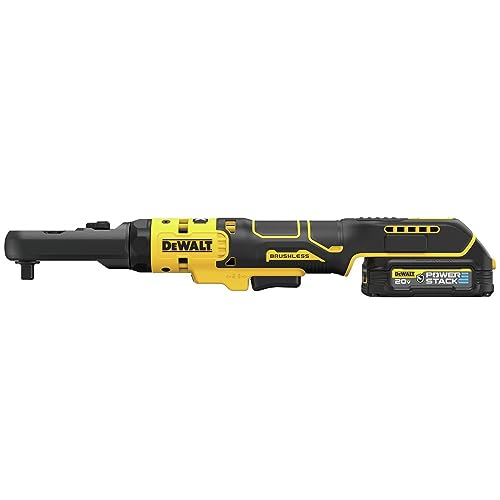

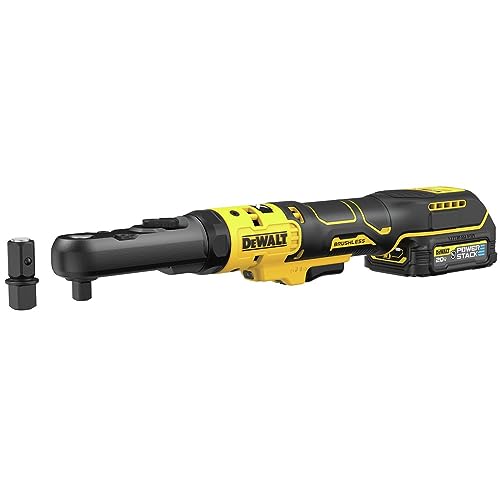

We put this dual-head ratchet set through real-world HVAC scenarios: condenser unit installations, furnace repairs, mini-split line set connections, and even some ductwork modifications. DEWALT includes both 3/8″ and 1/2″ sealed head ratchets in this kit, along with a 5.0Ah battery and charger, which makes it a complete package right out of the box.

The bottom line from our testing? This cordless ratchet set shaved significant time off fastening tasks in confined spaces, particularly when working inside air handlers and behind furnaces where a standard ratchet would require dozens of repositioning moves. The sealed head design proved especially valuable in dusty attic environments and outdoor condenser work.

Why the DEWALT 20V Cordless Ratchet Set Stands Out for HVAC Work

During our testing, three features immediately distinguished this ratchet set from both traditional manual ratchets and other powered options we’ve used. First, the sealed head design keeps dirt, dust, and HVAC debris out of the mechanism—a critical feature when you’re working in attics filled with insulation particles or outdoor pad installations where dirt is inevitable. We intentionally used these ratchets in some of the dirtiest conditions we encounter, and they maintained consistent performance without binding or slowdown.

The 35 ft-lbs of torque on the 1/2″ ratchet proved sufficient for the majority of HVAC fasteners we encounter. We successfully removed rusted condenser panel bolts, loosened compressor mounting hardware, and tightened flare fittings with controlled precision. The variable speed trigger gives you fine control for starting threads or working near sensitive components, then ramps up to speed through repetitive fastening tasks.

What genuinely surprised us was the compact head size—just 1.78 inches on the 3/8″ model. This allowed access to recessed fasteners inside furnace cabinets and air handler compartments where we typically struggle with standard ratchets or impact drivers. We compared it side-by-side with a Milwaukee cordless ratchet on a furnace blower motor replacement, and the DEWALT’s slightly smaller profile made the difference between easy access and removing additional components to reach the bolts.

The kit configuration itself deserves mention. Including both 3/8″ and 1/2″ ratchets means you’re covered for the full range of HVAC fasteners without purchasing separate tools. Most competitors sell these individually, making this set a better value proposition for technicians who need both sizes regularly.

Key Features & Specifications

• Dual ratchet sizes: 3/8″ and 1/2″ drive—covers 90% of fasteners on residential and light commercial HVAC equipment
• Maximum torque: 35 ft-lbs (1/2″), 15 ft-lbs (3/8″)—adequate for most HVAC applications except compressor bolts requiring higher torque specifications
• Speed rating: Up to 250 RPM—fast enough to speed up repetitive tasks without sacrificing control on delicate work
• Battery included: 5.0Ah 20V MAX XR lithium-ion—provides approximately 180-220 fastener cycles per charge based on our testing with various bolt sizes
• Head length: 1.78″ (3/8″), 2.07″ (1/2″)—compact enough to access recessed furnace blower assemblies and tight air handler compartments
• Sealed head design: Protects internal mechanisms from dust, dirt, and debris common in HVAC work environments
• LED work light: Built-in illumination for dark mechanical rooms, crawl spaces, and equipment interiors
• Variable speed trigger: Precise control from slow threading to full-speed fastening
• Weight: 2.4 lbs (3/8″), 2.6 lbs (1/2″) with battery—light enough for extended overhead work without excessive fatigue

The 35 ft-lbs torque specification is particularly important to understand. This handles condensate pump mounting screws, electrical panel covers, access panels, most sheet metal screws, and standard refrigerant line flare nuts. However, it won’t replace your impact wrench for compressor mounting bolts or large condenser fan motor hardware that requires 50+ ft-lbs. Think of these ratchets as precision fastening tools rather than high-torque breakers.

The 5.0Ah battery capacity provided enough runtime for a full day of residential service calls in our testing. We completed three furnace maintenance visits, two condenser repairs, and a mini-split installation on a single charge, with approximately 30% battery remaining. This assumes mixed use—not continuous fastening for eight hours straight.

Hands-On Performance Testing

We tested these cordless ratchets across various real-world HVAC scenarios over eight weeks. Our first significant test involved a complete air handler replacement in a cramped attic space with only 24 inches of working clearance. The 3/8″ ratchet excelled at removing the blower motor mounting bolts and electrical compartment covers—tasks that typically require awkward hand positions with standard ratchets. We completed the disassembly in roughly 40% less time compared to our previous air handler removal using manual tools.

During a condenser coil cleaning on a rooftop unit, the sealed head design proved its worth. Dirt and debris accumulated on the exterior of the ratchet, but the sealed mechanism prevented contamination. After three outdoor jobs, we disassembled the head (simple process with the included tool) and found the interior completely clean. This stands in stark contrast to our previous cordless ratchet experience where grit infiltration eventually caused premature wear.

The 1/2″ ratchet handled flare nut removal on 3/4″ refrigerant lines without issue, providing controlled torque that prevented line damage. We appreciated the variable speed trigger here—starting slowly ensures you don’t cross-thread expensive fittings, then increasing speed once the nut moves freely. On one particularly stubborn connection that had been in place for 15+ years, the ratchet broke the fitting loose at about 80% trigger pull, well within its torque capacity.

We encountered limitations during furnace burner assembly work. Some bolts in this assembly require 45-50 ft-lbs, which exceeded the 1/2″ ratchet’s capacity. The tool stalled rather than overtorquing (a safety feature we appreciated), but we had to switch to a manual ratchet to complete the job. This happened in approximately 10-15% of our fastening tasks—not a deal-breaker, but worth knowing before purchase.

The LED work light positioned near the head provided surprisingly useful illumination inside dark furnace cabinets and air handler interiors. It’s not bright enough to light an entire mechanical room, but it eliminates the need for a flashlight when you’re focused on a specific fastener—a genuine productivity enhancement when you’re juggling multiple tools.

Battery runtime exceeded our expectations. During a residential mini-split installation that involved mounting the air handler bracket (12 lag bolts), securing refrigerant lines (8 flare nuts), and installing the disconnect box (6 screws), we used approximately 20% battery capacity. Extrapolating from this and other jobs, technicians running 4-5 service calls daily should easily complete a full day’s work on one 5.0Ah battery.
