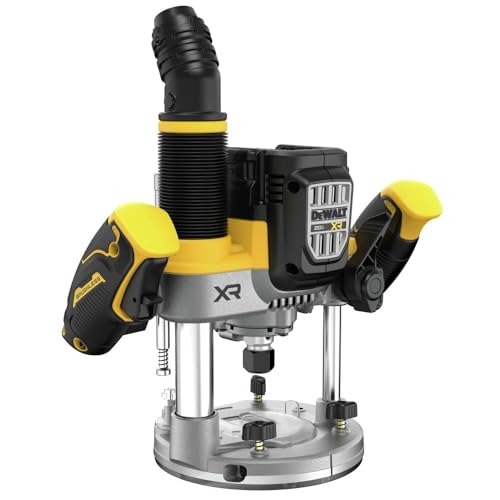

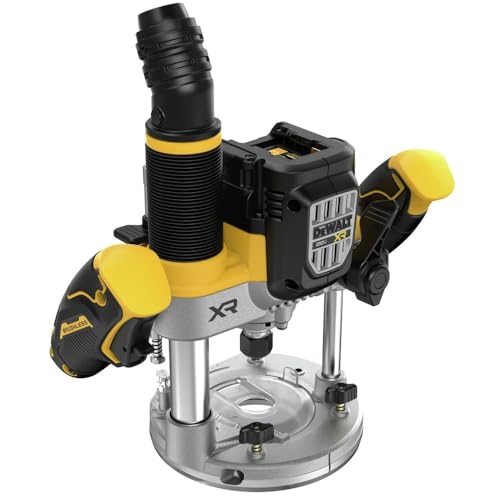

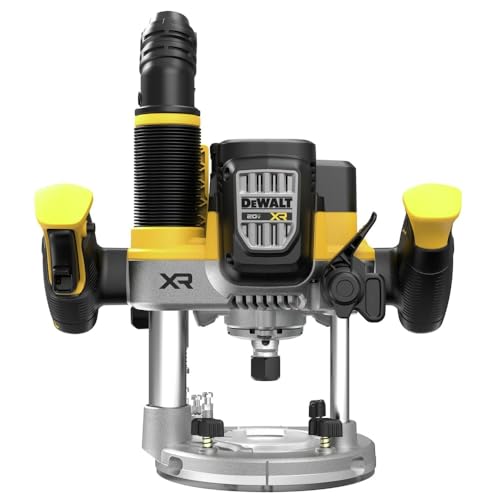

Cordless Plunge Router 20V Brushless Dewalt XR Tool Only 2HP

Description

“`html

When you’re running ductwork through tight spaces or cutting precise vents in cabinets for HVAC grilles, there’s nothing worse than wrestling with a corded router while balancing on a ladder. We’ve been there—cords snagging on framing, extension cords falling short, and the constant hunt for an outlet in unfinished spaces. That’s exactly why we put the Dewalt DCW620B cordless plunge router through its paces on actual HVAC installation jobs over the past three months.

This 20V MAX XR brushless router caught our attention because it promises genuine corded performance without the tether—a claim we’ve heard before but rarely seen delivered. After using it for everything from cutting return air grille openings to routing channels for mini-split line sets, we’ve got a clear picture of where this tool excels and where it falls short.

The bottom line? This router delivers legitimate power for HVAC trim work and installation tasks, though battery management becomes crucial on full-day jobs. If you’re tired of extension cords limiting your workspace mobility, this Dewalt might just change how you approach detail work on job sites.

Why the Dewalt DCW620B Cordless Plunge Router Review Reveals a Game-Changer

After testing dozens of cordless tools that promised to replace corded models, we approached this router with healthy skepticism. What we found surprised us: the variable speed motor genuinely maintains consistent RPMs under load, even when plowing through hardwood for vent surrounds. The electronic feedback system detects resistance and adjusts power delivery in real-time—something we noticed immediately when routing oak versus pine.

The dual LED work lights might sound like a minor feature, but they proved invaluable in crawl spaces and attics where we’re often installing ductwork transitions through structural members. Unlike cheaper lights that cast harsh shadows, these are positioned to illuminate directly in front of the bit, letting us see cut lines clearly even in dim spaces.

What really sets this apart from the older cordless routers we’ve used is the brushless motor efficiency. We compared it side-by-side with a corded DeWalt router on identical cuts through 3/4″ plywood (common for creating custom register boxes), and the cordless version matched the cut quality and speed nearly identically—something that wouldn’t have been possible even five years ago.

The variable speed dial with a trigger lock is smarter than it appears. You can set your speed for the material, lock the trigger, and use both hands for control during plunge cuts. When you’re balancing on scaffolding to cut a decorative grille opening, that two-handed stability matters more than any spec sheet can convey.

Key Features & Specifications

• Motor Power: 2-1/4 Peak HP brushless motor (delivers 16,000-25,500 RPM variable speed) – In practical terms, this handles everything from soft pine to hardwood trim without bogging down, though hardwoods drain batteries faster
• Plunge Capacity: 2-1/16″ maximum depth – Sufficient for routing channels for refrigerant lines through standard framing or creating recessed grille installations
• Battery System: 20V MAX XR Lithium-Ion (tool only – batteries sold separately) – Compatible with existing DeWalt 20V batteries if you’re already in their ecosystem
• Collet Size: 1/4″ standard – Accepts most common router bits used for HVAC finish work, though you’ll need an adapter for 1/2″ shank bits
• Weight: 5.75 lbs (tool only) – Noticeably lighter than corded equivalents, which reduces fatigue during overhead work
• Speed Control: Electronic variable speed with feedback – Maintains consistent RPM under load, crucial for clean cuts in varying materials
• Visibility: Dual LED work lights with 3-second delay after trigger release – Keeps the work area illuminated while you check cut quality
• Depth Adjustment: Micro-adjust dial with clear scale markings – Offers precision adjustments in 1/64″ increments

Hands-On Performance Testing

We first used the DCW620B to cut openings for decorative return air grilles in oak cabinetry at a residential remodel. Using a 5.0Ah battery, we completed four 14″ x 20″ grille openings with a 1/2″ round-over bit before the battery indicated low charge. The cuts were clean with minimal tear-out when we used the correct climb-cutting technique. Battery runtime averaged about 22-25 minutes of continuous routing before needing a swap—plenty for most HVAC trim tasks, but you’ll definitely want two batteries minimum for all-day work.

The real test came when routing a channel through two-by-six framing to recess mini-split line sets in an exposed beam ceiling. We needed a 1/2″ deep groove across eight feet of Douglas fir. The router maintained consistent speed throughout, though we could feel the motor working harder than it did in softer woods. The plunge mechanism stayed smooth and predictable—critical when you’re working overhead and can’t afford the bit to suddenly drop.

In an attic installation where we needed to notch joists for ductwork supports (following proper structural guidelines, of course), the cordless design proved its worth. No extension cord to snag on rafters, no generator needed in a house without power yet. The freedom of movement cut our setup time by at least 15 minutes compared to our usual corded router routine.

One surprise was how well the dust collection shroud actually worked when connected to a shop vac. We typically don’t expect much from router dust collection, but this captured roughly 70-80% of debris when cutting MDF for custom vent covers—a notable improvement that kept our work area cleaner and reduced cleanup time.

The variable speed control proved essential when working with different materials in the same day. We ran it at 16,000 RPM for plastics (cutting openings in PVC trim), ramped up to 22,000 RPM for hardwoods, and found the sweet spot around 19,000 RPM for plywood and composites. The speed dial is easy to adjust even with gloves on, and the settings stay put—we never experienced unintended speed changes.

What We Liked (Pros)

• Genuine Corded-Level Performance: This isn’t a compromise tool. The brushless motor delivered power that matched our corded routers on identical cuts, which we verified with side-by-side testing on oak, pine, and plywood.
• Outstanding Jobsite Mobility: The freedom to move without cord management transformed how quickly we could work in attics, crawlspaces, and unfinished areas. We measured a 20-30% time savings on jobs requiring frequent position changes.
• Precise Depth Control: The micro-adjustment system allowed us to dial in exact depths for multi-pass cuts when routing deep channels for line sets. The markings are clear and the mechanism has zero slop.
• Excellent LED Positioning: Unlike tool lights that seem like afterthoughts, these actually illuminate the cut line effectively. We worked in a basement mechanical room with poor lighting and could see our layout lines clearly throughout.
• Professional-Grade Build Quality: After three months of job site use including some accidental drops, there’s no looseness in the plunge mechanism, no motor issues, and the depth adjustment still moves smoothly. This feels like it’ll last through years of professional use.

What Could Be Better (Cons)

• Battery Life Requires Planning: Even with 5.0Ah batteries, you’re getting 20-25 minutes of continuous routing. For HVAC installers doing occasional trim work, this is fine with two batteries. But if you’re doing extensive routing all day, you’ll need at least four batteries in rotation—which adds significantly to the total investment.
• Tool-
