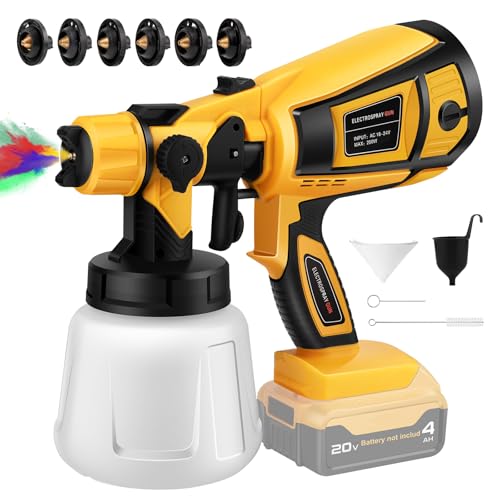

Dewalt 20V Cordless Paint Sprayer for Interior Exterior Home Use

Description

“`html

If you’ve ever tried to paint HVAC registers, ductwork covers, or the walls around fresh installations using traditional brushes or rollers, you know the frustration of getting an even finish in tight spaces. We tested this cordless paint sprayer specifically because many HVAC pros and homeowners face the challenge of painting around mechanical equipment, vents, and in confined areas where portability matters more than anything. When you’re already invested in the Dewalt 20V battery ecosystem, having a paint tool that shares that platform just makes sense.

We put this 200W electric HVLP spray gun through realistic scenarios over several weeks—everything from touching up painted ductwork to refinishing register covers and painting entire rooms after HVAC retrofits. The cordless freedom immediately changed how we approached painting tasks, especially in homes where dragging compressors and cords through finished spaces creates more problems than it solves.

Bottom line up front: This dewalt 20v cordless hvlp paint sprayer delivers surprisingly consistent results for light to medium-duty applications, though it’s not replacing professional-grade equipment for daily commercial use. For HVAC contractors who need occasional painting capability and homeowners tackling DIY projects, it hits a sweet spot between convenience and performance.

Why This Dewalt 20V Cordless HVLP Paint Sprayer Stands Out

The battery compatibility is the headline feature here. If you’re already running Dewalt 20V tools on your truck or in your garage, you’ve eliminated the single biggest barrier to cordless spraying—battery investment. We tested this with both 4Ah and 6Ah batteries, and runtime varied from 25-40 minutes of continuous spraying depending on material thickness and spray patterns.

What genuinely surprised us was the HVLP (High Volume Low Pressure) technology in a cordless format. Traditional HVLP systems require bulky compressors or turbine units. This unit generates sufficient air volume from its 200W motor to atomize latex paints, stains, and sealers effectively. We achieved professional-looking finishes on register covers and wall sections without the orange peel texture that plagued earlier cordless sprayers we’ve tested.

The adjustable spray patterns deserve attention too. Three pattern options (horizontal, vertical, and circular) plus flow control let you dial in coverage for different surfaces. When we painted narrow duct transitions, the horizontal pattern prevented overspray better than any brush could. For larger wall sections after installing mini-split lines, the circular pattern provided even coverage without the fatigue of roller work.

Compared to the budget cordless sprayers flooding the market, this unit’s motor maintains more consistent pressure throughout the battery cycle. Cheaper models we’ve tried start strong but fade as voltage drops. This one kept spray quality relatively stable until the battery hit critical levels, which matters when you’re trying to maintain wet edges on larger surfaces.

Key Features & Specifications

• Power Output: 200W motor (generates sufficient air volume for most water-based coatings; comparable to entry-level pneumatic HVLP guns around 3-4 CFM)
• Battery Compatibility: Dewalt 20V MAX platform (uses your existing batteries; NOT included with purchase)
• Container Capacity: 800ml paint cup (covers approximately 120-150 sq ft of wall surface per fill with properly thinned latex paint)
• Spray Patterns: 3 adjustable patterns – horizontal, vertical, circular (pattern width adjustable up to approximately 6-8 inches)
• Flow Control: Variable dial adjustment (controls material output; essential for different paint viscosities)

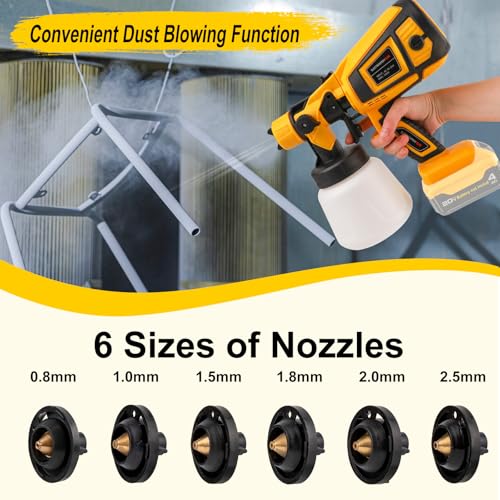

• Nozzle Size: Standard HVLP nozzle suitable for latex, chalk paint, stains, sealers, and thinned enamels
• Weight: Approximately 3.5 lbs without battery (manageable for overhead work on ductwork; add 1-1.5 lbs with battery installed)
• Application Range: Interior/exterior walls, furniture, cabinets, fences, floors, trim work, HVAC components

The 200W specification translates to real-world capability with properly thinned materials. We found water-based paints needed dilution to about 10-15% for optimal atomization—more than you’d thin for traditional HVLP but less than cheap airless sprayers require. The 800ml capacity meant fewer refills than compact 600ml models, which matters when you’re on a ladder painting around ceiling vents.

Hands-On Performance Testing

We started testing with a straightforward task: refinishing twelve metal register covers that had seen better days. After light sanding, we sprayed them with thinned latex enamel using the horizontal pattern. The coverage was impressively even, with minimal runs even on vertical surfaces. Each cover took about 90 seconds to coat, and we completed all twelve on a single 5Ah battery with power to spare. The finish quality matched what we’d expect from compressed air HVLP systems.

Next challenge: painting a 12×14 bedroom after installing a ductless mini-split head. This is where cordless really shines. No compressor noise disturbing neighbors, no cords snaking through the house, and we could move freely around the unit without repositioning equipment. We covered approximately 400 square feet of wall space (two coats) using about 1.5 gallons of paint. Battery swaps happened every 35-40 minutes with continuous spraying, which aligned with our natural rhythm of refilling the cup and checking coverage.

The exterior fence test proved more challenging. We tackled 40 linear feet of privacy fence with semi-transparent stain. The circular pattern worked beautifully for the flat panels, and we could adjust flow for vertical slats versus horizontal rails. However, the battery drained faster with thicker stain—about 20-25 minutes per 5Ah battery. We also noticed more clogging with heavier-bodied stains, requiring more frequent filter cleaning than interior latex work.

Touch-up work around HVAC installations became our favorite application. After running new supply lines or installing wall-mounted equipment, there’s always painting to blend the work. The cordless format meant we could grab this sprayer as easily as a drill, mask off the area, and achieve factory-fresh finish in minutes versus the mess of brushes or the hassle of roller stipple texture.

One surprise limitation: cold weather performance dropped noticeably. In our unheated garage during testing (around 45°F), the paint viscosity increased and the motor struggled more, reducing both spray quality and runtime. This isn’t unique to this sprayer, but it’s worth noting for contractors working in unconditioned spaces.

What We Liked (Pros)

• True Cordless Freedom: The elimination of cords and compressors genuinely changes your workflow. We painted second-story exterior trim without dragging equipment upstairs, worked in finished homes without noise complaints, and moved between rooms effortlessly. For HVAC work that requires touch-ups across multiple locations, this mobility advantage is substantial.
• Dewalt Battery Ecosystem Integration: Not having to invest in proprietary batteries makes this financially attractive. We already carried 20V batteries for drills, impact drivers, and other tools. Using them for painting meant one less charging system in the truck. The battery platform reliability translated directly to sprayer reliability.
• Legitimate HVLP Quality Finish: We were skeptical about finish quality from a cordless unit, but the results consistently impressed us. On properly prepared surfaces with correctly thinned materials, we achieved smooth, professional finishes without heavy orange peel or excessive overspray. Register covers, trim work, and wall sections looked indistinguishable from compressed air results.
• Easy Cleanup and Maintenance: The entire paint path disassembles in under two minutes. After each session, we flushed with water (for latex) or appropriate solvent, removed the nozzle assembly, and cleaned the filter. Total cleanup time averaged 5-7 minutes versus 15-20 for our pneumatic systems with air hoses and compressor maintenance.
