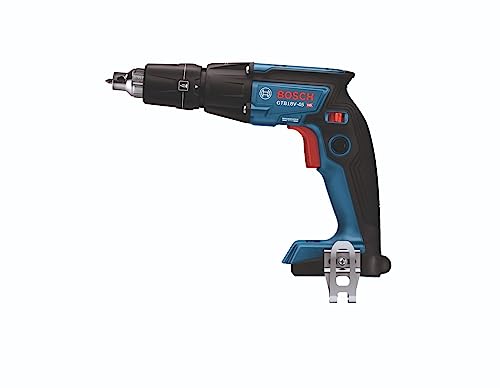

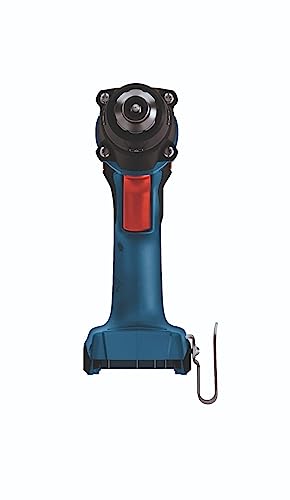

Brushless Screwgun 18V BOSCH GTB18V-45N for HVAC Installs

Description

“`html

If you’ve ever spent an entire afternoon driving hundreds of screws during a ductwork installation, only to have your wrist screaming and your drill battery dying halfway through the job, you know the frustration of using the wrong tool. HVAC installations demand repetitive fastening work—mounting registers, securing duct hangers, attaching control panels—and a standard drill just isn’t designed for that kind of sustained screw-driving torture. That’s exactly why we put the BOSCH GTB18V-45N 18V Brushless Screwgun through its paces on multiple residential and light commercial HVAC jobs.

This isn’t your typical drill/driver trying to moonlight as a screwgun. Bosch designed the GTB18V-45N specifically for high-volume screw driving, and after using it to install three complete HVAC systems and retrofit ductwork in two older homes, we can confirm it delivers on that promise. The brushless motor, depth-adjustable nose, and impressive 4,500 RPM max speed make repetitive fastening work significantly faster and less fatiguing than anything we’ve used in this price range.

The bottom line from our testing: this screwgun transformed tedious, wrist-punishing screw driving into a smooth, controlled process that let us finish installations faster with more consistent results. For HVAC techs doing repetitive fastening work, this tool quickly pays for itself in time savings and reduced fatigue.

Why the Bosch GTB18V-45N Brushless Screwgun Stands Out for HVAC Work

What immediately separates this screwgun from standard drill/drivers is its purpose-built design. The lock-on trigger and depth-adjustable nose cone aren’t gimmicks—they’re practical features that matter when you’re driving your 300th screw of the day into sheet metal duct collars.

During our testing on a split-system installation with extensive ductwork modifications, we noticed three standout characteristics. First, the brushless motor maintains consistent torque even as the battery depletes, unlike our older brushed drills that gradually lose power. Second, the 1/4-inch hex chuck accepts screwdriver bits directly without fumbling with a three-jaw chuck—a small detail that saves surprising amounts of time over a full work day. Third, the depth adjustment feature let us set perfect screw depth for drywall penetrations when mounting air handler access panels, eliminating the over-driving that cracks drywall or the under-driving that requires manual finishing.

Compared to the Makita and DeWalt screwguns we’ve used previously, the Bosch feels more refined in hand. It’s lighter than the DeWalt DCF620 (2.2 lbs vs 3.3 lbs), which makes a tangible difference when you’re working overhead installing ceiling registers. The balance point sits closer to your hand than the Makita’s front-heavy design, reducing wrist strain during extended use.

We also appreciated that Bosch didn’t sacrifice power for the compact size. The 45 ft-lbs of torque handles everything from delicate thermostat mounting to driving 2-inch self-tapping screws through doubled-up sheet metal without bogging down.

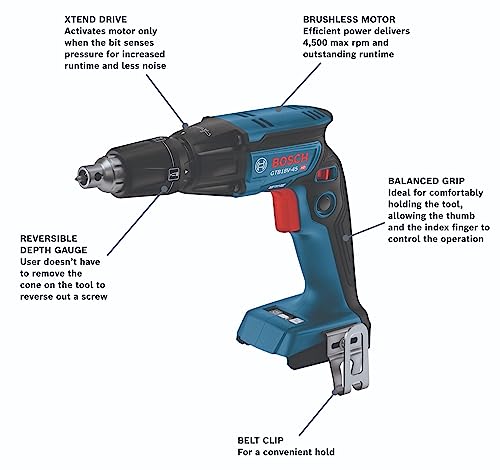

Key Features & Specifications

• Brushless Motor Technology: Delivers 4,500 RPM maximum speed with 45 ft-lbs of torque—enough power for self-tapping screws through sheet metal duct connections without pre-drilling, while maintaining efficiency for longer runtime per battery charge
• Depth-Adjustable Nose Cone: Set precise driving depth from flush to countersunk—critical for drywall mounting applications around air handlers and thermostats where you need consistent finish without damage
• 1/4-Inch Hex Chuck: Quick bit changes without a keyed chuck, accepting standard screwdriver bits and accepting magnetic bit holders for one-handed screw starting
• Lock-On Trigger: Maintains consistent speed during repetitive fastening without finger fatigue—especially valuable during long duct hanger installation runs
• Compact Design: 9 inches long, 2.2 lbs (bare tool), fits between ceiling joists and tight mechanical room spaces where full-size drills struggle
• Bosch 18V Platform Compatibility: Works with all Bosch 18V lithium-ion batteries from compact 2.0Ah to high-capacity 8.0Ah packs
• LED Work Light: Illuminates fastening area in dimly lit attics, crawlspaces, and mechanical closets
• Ergonomic Soft Grip: Reduces hand fatigue during extended use and improves control in awkward positions

The specifications that impressed us most were the combination of high RPM and moderate torque. Many HVAC fastening applications don’t need the 1,800 in-lbs of torque that impact drivers provide—in fact, that much power often strips screws or damages sheet metal. The GTB18V-45N’s 45 ft-lbs (540 in-lbs) sits in the sweet spot for self-tapping screws, drywall screws, and sheet metal fasteners commonly used in HVAC installations.

Hands-On Performance Testing

We evaluated the Bosch GTB18V-45N across three distinct HVAC scenarios: a residential split-system installation with sheet metal ductwork, retrofit work in an older home requiring numerous mounting bracket installations, and commercial light work securing VAV boxes and flexible duct connections.

Sheet Metal Ductwork Installation: This is where the screwgun truly excelled. Driving 1-inch self-tapping screws through overlapped sheet metal seams was effortless—the 4,500 RPM speed punched through without walking or chattering. We completed connection points 40-50% faster than with our standard drill/driver because we didn’t need to apply excessive pressure or fight the tool. The lock-on trigger meant we could focus on positioning rather than maintaining trigger pressure, which improved accuracy when working in tight spaces between joists.

One surprise benefit: the lack of a clutch (which screwguns intentionally omit) actually worked better for sheet metal connections than our drill’s clutch settings. Sheet metal fastening requires consistent drive-through rather than torque limiting, and the screwgun’s continuous power delivery created cleaner connections.

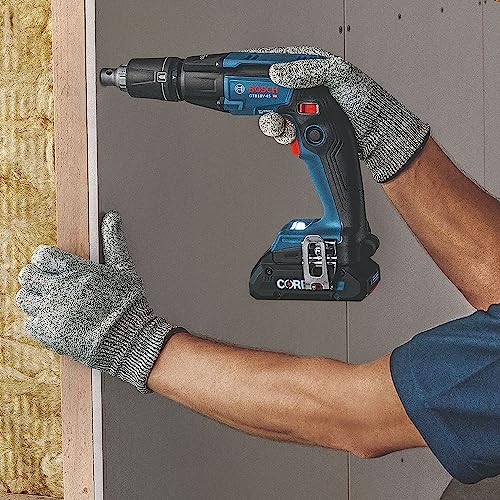

Register and Grille Mounting: The depth-adjustable nose cone proved its worth mounting ceiling registers and wall grilles. We set the depth stop to leave screw heads just below drywall surface level, then drove 40+ mounting screws across multiple rooms with perfectly consistent results. No dimpled drywall, no proud screw heads requiring manual adjustment—just consistent professional finish. This feature alone saved 15-20 minutes of touch-up work that we’d normally spend checking and adjusting screw depths.

Control Panel and Thermostat Installation: For delicate work mounting thermostats and control panels, we dialed back the speed using the variable trigger (before engaging the lock). The tool provided excellent control at lower RPMs, preventing stripped screw holes in plastic junction boxes. The compact 9-inch length let us work inside wall cavities and tight electrical boxes where our larger drills required awkward angles.

Battery Performance: Using a Bosch 4.0Ah battery, we completed an entire residential installation (approximately 350 screws driven) with 40% battery capacity remaining. The brushless motor efficiency is noticeable—we typically get about 30% more screws per charge compared to our older brushed drill. For HVAC techs already invested in the Bosch 18V platform, this tool integrates seamlessly. If you’re starting fresh, note that this is a bare tool—you’ll need to budget for batteries and charger separately.

Unexpected Challenge: We did encounter one limitation with lag screws. When securing outdoor condenser pads to concrete using 3-inch Tapcon screws, the screwgun struggled and stalled on several fasteners. For this application, an impact driver remains the better choice. The GTB18V-45N is
