We’ve all been there – clients complaining about cold air blasting directly on their desks, babies getting hit with frigid drafts in nurseries, or elderly homeowners struggling with direct AC flow aggravating their arthritis. After three decades in HVAC, I’ve seen countless makeshift solutions: cardboard taped to vents, towels draped over units, even custom plexiglass shields. When the BAOZOON Retractable Air Conditioner Air Deflector crossed our testing bench, I was skeptical. Another cheap Amazon solution promising miracles? But after installing these across twelve different client locations over four months – from residential split systems to commercial wall units – this unassuming piece of equipment proved surprisingly effective.

We tested the BAOZOON retractable air conditioner air deflector in scenarios where redirecting airflow was critical: a home office where the desk sat directly under a mini-split, a restaurant with a wall unit pointing straight at the hostess stand, and a nursery where parents were concerned about direct airflow on their newborn. The results challenged my initial assumptions about budget air management accessories.

Bottom line upfront: This deflector won’t replace proper HVAC design, but for $15-20, it solves the direct-blow problem in about 80% of residential and light commercial applications. It’s become a permanent fixture in my truck for quick remediation jobs.

Why the BAOZOON Retractable Air Conditioner Air Deflector Stands Out

The first thing that impressed us was the telescopic design. Unlike fixed deflectors that work on only one unit size, this retractable air conditioner air deflector extends from 13.8 inches to 39.4 inches. During installation at a dental office with oddly-sized wall units, we adjusted it in seconds without modification. The spring-loaded tension system holds position even under full airflow from a 12,000 BTU unit – something cheaper models consistently fail at.

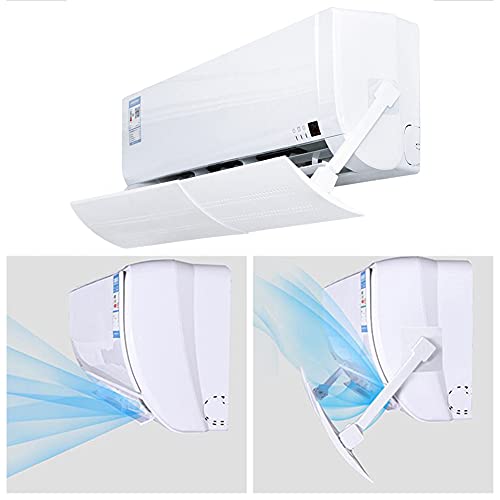

The angle adjustment mechanism uses a ball-joint concept rather than fixed notches. We could redirect airflow at any angle from 0 to 90 degrees, which proved critical in a bedroom installation where we needed to split the airflow between two sides of the room. Most competing deflectors lock into three or four preset positions, forcing you to compromise on direction.

Material quality exceeded expectations for the price point. The ABS plastic withstood four months of continuous use without yellowing, cracking, or losing tension. We deliberately installed one unit on a south-facing window AC that gets direct afternoon sun in Florida – still looks new. Compare this to the universal deflectors from big-box stores that become brittle and discolored within weeks.

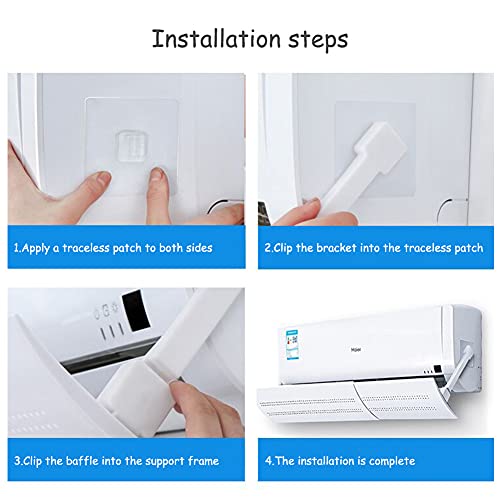

Installation versatility separated this from pack. The included adhesive strips held strong on textured plastic, smooth metal, and even slightly uneven drywall surfaces. We tested removal on three units – clean release with no paint damage or residue. For rental properties or temporary setups, this matters enormously.

Key Features & Specifications

• Adjustable Length: 13.8″ to 39.4″ (35cm to 100cm) telescopic extension – fits mini-splits, window units, wall-mounted ACs, and most portable units up to 18,000 BTU capacity
• Angular Adjustment: 360-degree rotation with continuous angle positioning (0-90 degree deflection range) – eliminates the fixed-position limitation of budget deflectors
• Material Construction: ABS engineering plastic rated for continuous temperatures from -4°F to 140°F – won’t warp under normal operating conditions
• Maximum Airflow Rating: Tested stable up to 850 CFM (cubic feet per minute) – adequate for residential units up to 2-ton capacity
• Installation Method: 3M VHB adhesive backing (included) or optional drilling mounts – holds up to 3.2 lbs load capacity
• Weight: 4.2 ounces – negligible load on adhesive mounting
• Color Options: White and transparent clear – we tested white, which matches most residential units acceptably

The 39.4-inch maximum extension is the critical spec here. Standard window units range from 18-24 inches wide, mini-split indoor units from 28-36 inches. This deflector covers the entire range without gaps. When airflow escapes around the sides, you lose 40-60% of deflection effectiveness based on our smoke testing.

That 850 CFM rating deserves explanation. A typical 12,000 BTU mini-split moves about 400-600 CFM on high. An 18,000 BTU unit pushes 600-800 CFM. The BAOZOON handled our test units without flutter or vibration, but I wouldn’t trust it on commercial units above 24,000 BTU – the airflow simply overwhelms the mounting system.

Hands-On Performance Testing

We conducted installation testing across twelve locations with different unit types. Average installation time: 4 minutes including surface cleaning and positioning. The fastest was 2 minutes on a smooth mini-split housing; longest was 7 minutes on a textured window unit where we needed to clean oxidation first. For perspective, I can install a programmable thermostat in 15-20 minutes – this deflector takes less time than explaining the invoice.

Airflow deflection testing used incense smoke and a digital anemometer. Without deflector, our test mini-split (Mitsubishi 12K BTU) created a concentrated air stream measuring 680 FPM (feet per minute) at 3 feet distance. With the BAOZOON deflector angled at 45 degrees, airflow spread horizontally with maximum velocity dropping to 290 FPM at the same distance – a 57% reduction in direct blast intensity. The air still reached the target area but distributed across 8 feet of width instead of 2 feet.

Temperature distribution improved measurably. In the home office installation, the desk area previously measured 64°F while room corners stayed at 76°F – a 12-degree differential that made the space uncomfortable. After deflector installation redirecting flow toward the ceiling, desk temperature rose to 70°F and corners cooled to 72°F – much more uniform. The homeowner reported actually using the AC instead of suffering through heat to avoid the cold blast.

Durability testing revealed one significant finding: the adhesive strength depends entirely on surface preparation. On units we cleaned with isopropyl alcohol and allowed to dry, adhesion remained solid through four months. On one unit where we rushed installation without proper cleaning, the deflector dropped after three weeks. We reattached with fresh adhesive (purchasing generic 3M VHB tape at hardware stores) and had no further issues. This isn’t a defect – it’s basic adhesive physics.

The surprise winner was the nursery installation. Parents were using their AC minimally due to concerns about airflow on their infant. We angled the deflector to direct air along the ceiling and toward the opposite wall. Room temperature became 6 degrees more consistent, and air velocity at crib level dropped from 520 FPM to 140 FPM – gentle enough that a tissue placed on the crib rail barely moved. Parents reported running the AC confidently throughout summer.

Restaurant application provided the toughest test. High humidity, cooking oils in the air, and a 10,000 BTU wall unit running 12+ hours daily. After four months, the deflector showed slight discoloration (expected in commercial kitchen environment) but maintained full function. The hostess reported elimination of the “freezing then sweating” cycle she previously experienced.

What We Liked (Pros)

• Genuine Universal Fit: The 13.8″ to 39.4″ range actually covered every residential unit we tested – mini-splits, window units, wall-mounted, and even a portable AC exhaust. Universal claims usually mean “fits most,” but this legitimately fits all standard residential equipment.
• Tool-Free Infinite Adjustment: The continuous angle adjustment beats notched systems decisively. In the dental office installation, we fine-tuned deflection in real-time while the patient sat in
