Air Conditioning Simplified: Installing a Mini-Split System

Introduction

In today’s rapidly changing world, comfort and convenience in our homes have become paramount. With extreme weather conditions becoming more frequent, having a reliable air conditioning solution is essential. One such solution that has gained popularity in recent years is the mini-split air conditioning system. This article will guide you through the installation process of a mini-split system, inspired by a YouTube script where a friend documents their installation adventure. Whether you’re a DIY enthusiast or just curious about how these systems work, you’ll find this journey informative and enlightening.

What is a Mini-Split System?

Before diving into the installation process, it’s essential to understand what a mini-split system is. A mini-split air conditioning system, also known as a ductless system, consists of two main components: an indoor unit and an outdoor unit. These systems are designed to provide efficient heating and cooling for individual rooms or zones. Unlike traditional central air conditioning systems, mini-splits do not require ductwork, making them an ideal choice for older homes, room additions, and areas where installing ductwork is impractical.

The key advantages of mini-split systems include:

1. Energy Efficiency: Mini-splits are known for their high energy efficiency, thanks to their ability to condition only the rooms you use.
2. Zoned Comfort: Each indoor unit can be controlled independently, allowing for personalized comfort in different areas of your home.
3. Easy Installation: Without the need for extensive ductwork, mini-split systems are relatively easy to install, saving both time and money.
4. Versatility: Mini-splits can be used for both cooling and heating, making them a versatile solution for year-round comfort.

Tools and Materials Needed for Installation

To embark on your mini-split installation journey, you’ll need the following tools and materials:

Tools:

1. Drill and Drill Bits: For mounting the indoor and outdoor units.
2. Pipe Wrenches: To tighten refrigerant lines.
3. Vacuum Pump: To remove air and moisture from the refrigerant lines.
4. Brazing Torch and Supplies: For connecting copper refrigerant lines.
5. Nitrogen Tank and Regulator: To purge the lines while brazing.
6. Refrigerant Gauges: To measure and charge the system with refrigerant.
7. Torque Wrench: To ensure proper tightening of connections.
8. Electrical Tools: Including wire strippers, crimpers, and a multimeter.

Materials:

1. Mini-Split System Kit: Including the indoor and outdoor units.
2. Mounting Brackets: For securing the indoor and outdoor units.
3. Copper Refrigerant Lines: Sized appropriately for your system.
4. Electrical Wires: For connecting the indoor and outdoor units to the power supply.
5. PVC Condensate Drain Line: To drain condensate water from the indoor unit.
6. Insulation Sleeve: For the refrigerant lines.
7. Fasteners: Such as screws, anchors, and bolts.
8. Refrigerant: To charge the system if it’s not pre-charged.

Now that you have your tools and materials ready, let’s dive into the installation process.

Step-by-Step Installation

1. Planning and Preparation

Before you start drilling holes and mounting equipment, proper planning is crucial. Here are the steps to follow in this phase:

Selecting the Installation Location

Choose the ideal locations for both the indoor and outdoor units. Consider the following factors:

• Indoor Unit: Install the indoor unit on an exterior wall where it has access to the refrigerant lines and electrical connections. Ensure there are no obstacles that may obstruct airflow.
• Outdoor Unit: Place the outdoor unit on a solid, level surface, such as a concrete pad or mounting brackets. Ensure there is adequate clearance for proper airflow and maintenance.

Measuring and Marking

Accurate measurements and markings are essential to ensure a smooth installation:

1. Indoor Unit: Measure and mark the position for the mounting bracket on the wall. Use a level to ensure it’s straight.
2. Outdoor Unit: Mark the spot where you’ll install the mounting brackets or concrete pad. Ensure it’s level and stable.

2. Mounting the Indoor Unit

With the planning and preparation complete, it’s time to mount the indoor unit:

Install the Mounting Bracket

1. Drill Holes: Use a drill with the appropriate bit to create holes for the mounting bracket. Make sure to hit studs or use appropriate anchors for secure mounting.
2. Secure the Bracket: Attach the mounting bracket to the wall using screws or bolts, ensuring it’s level.

Prepare the Refrigerant Lines

1. Measure and Cut: Measure the length of copper refrigerant lines needed to connect the indoor and outdoor units. Cut them to the required length.
2. Flare the Ends: Use a flaring tool to create flared ends on the refrigerant lines. This ensures a secure connection to the indoor unit.

Mount the Indoor Unit

1. Connect the Lines: Carefully connect the refrigerant lines to the indoor unit’s fittings. Use a torque wrench to tighten the connections to the manufacturer’s specifications.
2. Secure the Unit: Lift the indoor unit and place it on the mounting bracket, ensuring it’s securely attached.

3. Installing the Outdoor Unit

With the indoor unit in place, it’s time to install the outdoor unit:

Position the Outdoor Unit

1. Prepare the Ground: If you’re using a concrete pad, ensure it’s level and stable. If using mounting brackets, secure them to the wall according to the unit’s specifications.
2. Place the Unit: Carefully position the outdoor unit on the pad or brackets, ensuring it’s level.

Connect the Refrigerant Lines

1. Run the Lines: Route the refrigerant lines from the indoor unit to the outdoor unit. Ensure they are properly insulated and free from kinks.
2. Connect the Lines: Attach the refrigerant lines to the outdoor unit’s fittings. Use a torque wrench to ensure secure connections.

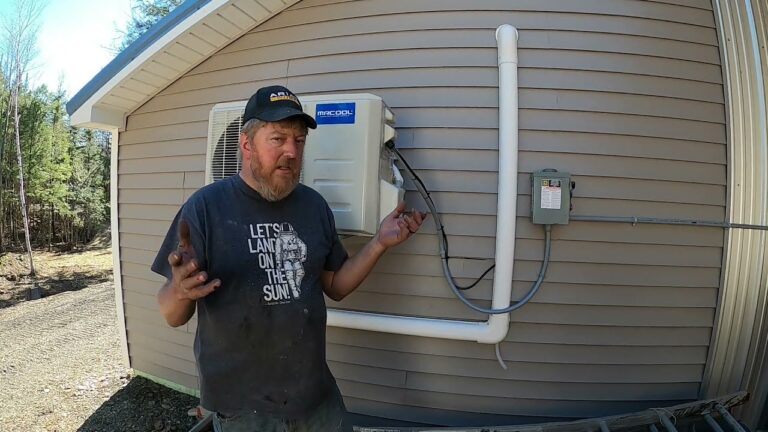

Electrical Connections

1. Run Electrical Wires: Install the electrical wiring between the indoor and outdoor units. Follow the manufacturer’s instructions for correct wiring.
2. Connect to Power Supply: Connect the outdoor unit to the main power supply. Ensure the circuit breaker is off during this step for safety.

4. Brazing and Purging

With the units mounted and refrigerant lines connected, it’s time to braze the copper lines and purge them with nitrogen:

Brazing the Connections

1. Purge with Nitrogen: Before brazing, attach a nitrogen regulator to a nitrogen tank and purge the refrigerant lines. This prevents oxidation and contamination during brazing.
2. Brazing Torch: Use a brazing torch to heat the connections and apply brazing alloy to create a secure, leak-free seal.
3. Cool Down: Allow the connections to cool naturally. Do not use water or any other cooling method to avoid thermal shock.

Pressure Test

1. Pressurize with Nitrogen: Pressurize the refrigerant lines with nitrogen to the manufacturer’s recommended pressure. Check for leaks using a soap solution. If any leaks are found, repair them and repeat the pressure test.
2. Vacuum the Lines: After confirming there are no leaks, use a vacuum pump to evacuate the refrigerant lines. This removes any remaining air and moisture, ensuring optimal system performance.

5. Charging the System

With the lines evacuated, it’s time to charge the system with refrigerant:

Connecting Refrigerant Gauges

1. Attach Gauges: Connect refrigerant gauges to the service valves on the outdoor unit. Ensure the gauges are in the correct positions for both high and low-pressure readings.

Charging the System

1. Release Refrigerant: If the system is pre-charged, open the service valves to release the refrigerant. If not, use a refrigerant cylinder to charge the system to the manufacturer’s specifications.
2. Monitor Gauges: Carefully monitor the refrigerant gauges during the charging process, ensuring the correct pressure levels are achieved.

6. Final Adjustments and Testing

With the system charged, it’s time for final adjustments and testing to ensure everything is working correctly:

Securing Connections

1. Check Tightness: Double-check all connections to ensure they are secure and properly tightened.
2. Insulate Lines: Cover the refrigerant lines with insulation sleeves to prevent energy loss and condensation.

Power On

1. Turn on Power: Switch on the circuit breaker for the outdoor unit.
2. Test Run: Turn on the indoor unit and set it to cooling mode. Allow the system to run for a while and check for any unusual noises or issues.

7. Maintenance Tips

To ensure your mini-split system operates efficiently and lasts for years to come, follow these maintenance tips:

1. Regular Cleaning: Clean the indoor unit’s filters regularly to maintain optimal airflow.
2. Inspect for Leaks: Periodically check the refrigerant lines for any signs of leaks.
3. Professional Servicing: Schedule professional servicing annually to ensure the system is in top condition and to address any potential issues.

Conclusion

Installing a mini-split air conditioning system can provide you with efficient, personalized comfort for your home. While the process may seem daunting at first, proper planning, the right tools, and careful execution can make the installation manageable, even for a dedicated DIY enthusiast. By following the steps outlined in this guide, you’ll be well on your way to enjoying the benefits of a mini-split system.

Remember, if you’re ever unsure about any step in the installation process, don’t hesitate to consult a professional HVAC technician. Ensuring a safe and proper installation is paramount for the longevity and performance of your mini-split system.

So, roll up your sleeves, gather your tools and materials, and embark on your mini-split installation adventure. Soon, you’ll be relaxing in a perfectly conditioned home, no matter the weather outside.
