Exploring a Comprehensive Five-Zone Mitsubishi Installation on a Historic 1938 Home
When it comes to HVAC installations, each project offers a unique set of challenges and learning opportunities. Our latest project was no exception, involving the installation of a five-zone Mitsubishi system in a historic home built in 1938. Such an undertaking requires not only technical expertise but also sensitivity towards the home’s historical architecture. Situated on a slab foundation with only an attic crawlspace, this job was particularly intriguing, yet the end result was a success with a clean and efficient system that meets the homeowner’s needs.
Project Overview
Before diving into the specifics, let’s get an overview of what the project entailed. This system installation required an outdoor unit that was mounted on brackets and a panel to run power to the outdoor unit. Inside the house, the installation was distributed across five zones, each requiring careful planning and precision.
Outdoor Unit Installation

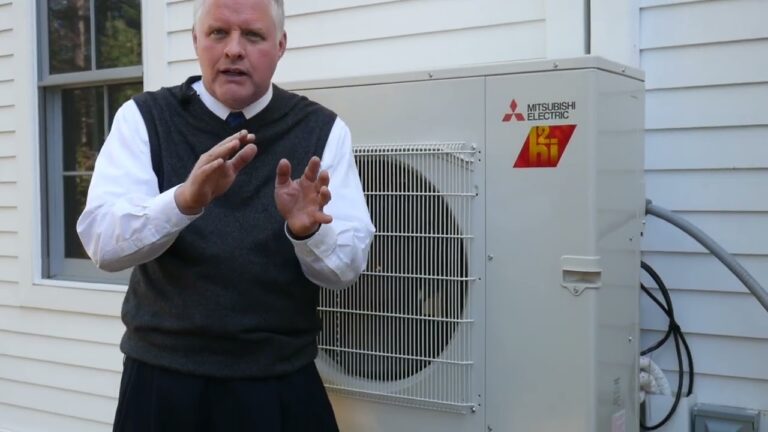

The placement of the outdoor unit is crucial for the overall efficiency and accessibility of the system. In this project, the outdoor unit was mounted using brackets to secure it in place. This choice not only provided a stable foundation for the unit but also helped in mitigating any vibrations or potential noise issues that could disturb the homeowner.
A power panel was installed nearby to ensure that the outdoor unit had a reliable power source. This facilitated easy electrical connections and simplified any future maintenance work. Additionally, the outdoor unit’s drain line was strategically placed to ensure effective water discharge.
Zone Connections and Challenges
One of the most interesting aspects of this installation was the distribution of zoning. Let’s walk through each of the zones and the specific challenges we encountered.
Zone 1: Adjacent to the Outdoor Unit
The first zone was located right behind the outdoor unit. This proximity simplified the installation process as it required minimal piping and wiring extensions. The drain line for this zone seamlessly integrated with the unit’s existing drainage system, ensuring effective water removal without any complications.
Zones 2 and 3: Spanning the Opposite Side
Moving to the opposite side of the house, we had two zones connecting via a large tract. The first zone’s drain line elegantly descended alongside the tract. However, the third zone presented a bit more complexity. It required precise routing to navigate through the house’s structure while maintaining a clean and unobtrusive look.
Zone 4: Main Floor
The fourth zone was situated on the main floor of the home. The challenge here took the form of concealment. We had to ensure that the drain lines and conduits blended in seamlessly with the home’s aesthetics. Strategic placement behind walls and under flooring helped maintain a visually appealing finish without compromising the system’s functionality.
Zone 5: Attic and Upper Floor
The final zone extended up into the attic space and a room located on the upper floor. This was perhaps the most challenging zone to install due to height and the intricacy of routing pipes and electrical lines through the attic. We used corrugated lineside hide, a flexible conduit that allowed us to maneuver around obstacles without compromising the system’s integrity. This solution not only met the technical requirements but also maintained a clean look.
Indoor Units
Each indoor unit was meticulously placed to maximize both efficiency and aesthetics. Let’s explore where these units were installed and the considerations involved.
Main Floor Installations
On the main floor, we placed units in strategic locations to ensure even temperature distribution. In the primary living space, an indoor unit blended effortlessly with the room’s decor while providing ample cooling and heating. Another unit was placed in an adjacent room, serving additional living areas and enhancing overall comfort.
Upper Floor Installations
Upstairs, we had to be particularly careful to maintain the historical charm of the home. One unit was installed in a corner, tucked away to remain unobtrusive yet effective. In the attic space, another unit was strategically placed to cover the upper floors adequately.
Kitchen Zone Installation
A small unit was installed in a tiny, seldom-used kitchen. While this kitchen may not see frequent use, the unit provides flexibility for future use and adds resale value to the home.
Handling Asbestos Siding
One of the unique challenges of this project was dealing with asbestos siding. Asbestos, a material commonly used in older homes, can be brittle and difficult to work with. Our team had to exercise extreme caution to avoid breaking or damaging the siding during the installation process.
From the outset, dealing with asbestos siding required specialized tools and techniques. Anchoring anything to it can be delicate and complex. Through experience and meticulous planning, we developed methods to work with asbestos without compromising its integrity. This knowledge proved imperative in maintaining the house’s exterior while ensuring a secure installation of the HVAC units.
Project Highlights and Customer Satisfaction
This project wasn’t just about overcoming technical challenges. It was also about ensuring the homeowner was satisfied with both the process and the result. Being a historic home, the homeowner had valid concerns about maintaining its charm and integrity throughout the installation.
Customized Solutions
Every homeowner’s needs are different, especially when dealing with a property that carries historical value. Our customized solutions, which included the use of flexible conduits and strategic placement of units, helped preserve the home’s original aesthetics while introducing modern comfort.
Transparency and Communication
Open communication with the homeowner was crucial from start to finish. Providing regular updates and discussing potential challenges allowed us to manage expectations and ensure complete transparency.
Professionalism and Precision
Our team approached each task with professionalism and precision, taking care to work within the home’s constraints. From handling asbestos siding to navigating the attic crawlspace, every step of the process was executed with attention to detail and respect for the property.
Conclusion
Installing a five-zone Mitsubishi system in a historic home built in 1938 was a fascinating project that required a blend of technical skill, creativity, and respect for architectural heritage. Overcoming challenges such as working with asbestos siding, navigating a slab foundation, and ensuring clean and aesthetically pleasing installations were all part of the journey.
By focusing on customized solutions, maintaining open communication with the homeowner, and adhering to professional standards, the result was a successful installation that met the client’s needs without compromising the property’s character. The finished project stands as a testament to what can be achieved when technology and tradition harmoniously coexist.
For anyone considering a similar project, this experience underscores the importance of comprehensive planning, skilled execution, and a client-centered approach. Technology may evolve, but the principles of good craftsmanship and customer satisfaction remain timeless. Thank you for taking this journey with us, and we look forward to tackling even more challenging and rewarding projects in the future.
